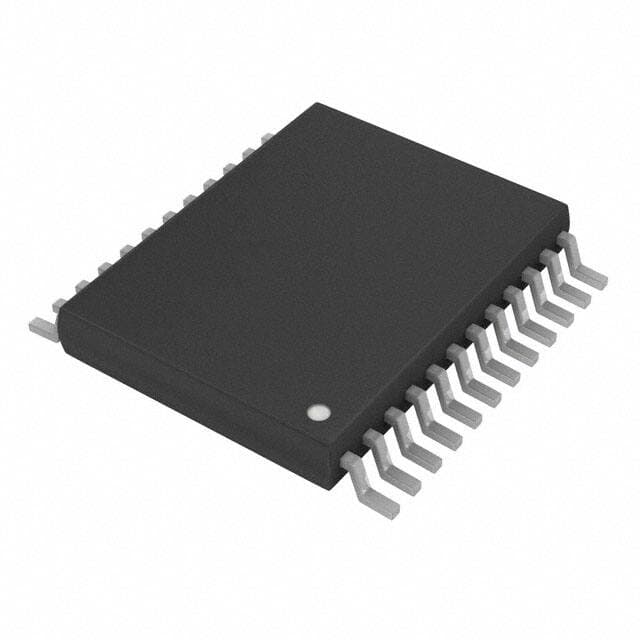

TI 74GTLPH306DGVRE4

Manufacturer No:

74GTLPH306DGVRE4

Manufacturer:

Package:

24-TFSOP (0.173, 4.40mm Width)

Description:

Surface Mount 24 pins Tape & Reel (TR) 3.3V V Voltage Translators & Level Shifters 1 Mixed Signal 24-TFSOP (0.173, 4.40mm Width) Active 6 Weeks Weeks 1 (Unlimited)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74GTLPH306DGVRE4 information

TI 74GTLPH306DGVRE4 technical specifications, attributes, parameters and parts with similar specifications to TI 74GTLPH306DGVRE4.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 1 week ago)

Factory Lead Time
6 Weeks

Contact Plating
Gold

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
24-TFSOP (0.173, 4.40mm Width)

Number of Pins
24

Weight
60.894776mg

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
74GTLPH

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

Subcategory
Bus Driver/Transceivers

Packing Method
TR

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Frequency
175MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
74GTLPH306

Pin Count
24

Qualification Status
Not Qualified

Output Type
Tri-State, Non-Inverted

Operating Supply Voltage
3.3V

Polarity
Non-Inverting

Number of Circuits
1

Max Supply Voltage
3.45V

Min Supply Voltage
3.15V

Number of Ports
2

Nominal Supply Current
20mA

Output Current
50mA

Number of Bits
8

Propagation Delay
7.5 ns

Turn On Delay Time
7.5 ns

Logic Function
Transceiver, Translator

Output Characteristics
3-STATE

Logic IC Type
BUS TRANSCEIVER

High Level Output Current
-24mA

Channel Type
Bidirectional

Low Level Output Current
50mA

Download datasheets and manufacturer documentation for TI 74GTLPH306DGVRE4.

74GTLPH306DGVRE4 Overview

Package 24-TFSOP (0.173, 4.40mm Width) includes it.This package has the format of Tape & Reel (TR).Level translators uses Tri-State, Non-Inverted as level translatorss output configuration.Level translators has the translator type Mixed Signal.The electronic part is mounted in a way that corresponds to Surface Mount.Bidirectional is the type of channel for this electrical device.Operation is performed at -40°C~85°C TA.To achieve its exceptional flexibility, it relies on 1 circuits.To end a transmission line, there are 24 types of termination that can be used.A series of related parts can be determined from the base part number 74GTLPH306.A supply voltage of 3.3V is used to power the device.Pin count is 24.There is one device in the 74GTLPH series, and it belongs to that series.Designed with 24 pins, it is compatible with a wide range of devices.The design of this electronic part contains 8 bits.The supply voltage is limited to 3.45V.3.15V is its minimum supply voltage.The mount method is Surface Mount.As part of Bus Driver/Transceivers, it belongs.There is BUS TRANSCEIVER logic IC in it.2 terminations are possible, which each match the transmission line's characteristic impedance.In view of its reliable performance, this device can be considered suitable for TR.Because it features a 50mA output current, maximum design flexibility can be achieved.For maximum efficiency, the supply voltage should be set to 3.3V.Level shifter is possible to achieve 175MHz frequencies.

74GTLPH306DGVRE4 Features

24-TFSOP (0.173, 4.40mm Width) package
1 circuits
24 pin count
74GTLPH series
24 pins

74GTLPH306DGVRE4 Applications

There are a lot of Texas Instruments
74GTLPH306DGVRE4 voltage translators & level shifters applications.

PMBus
SMBus
SDIO
UART
I2C
Automotive
Personal computing
Automotive infotainment
Advanced Driver Assistance System (ADAS)
Telematics
