74FCT163244CPAG8 Overview

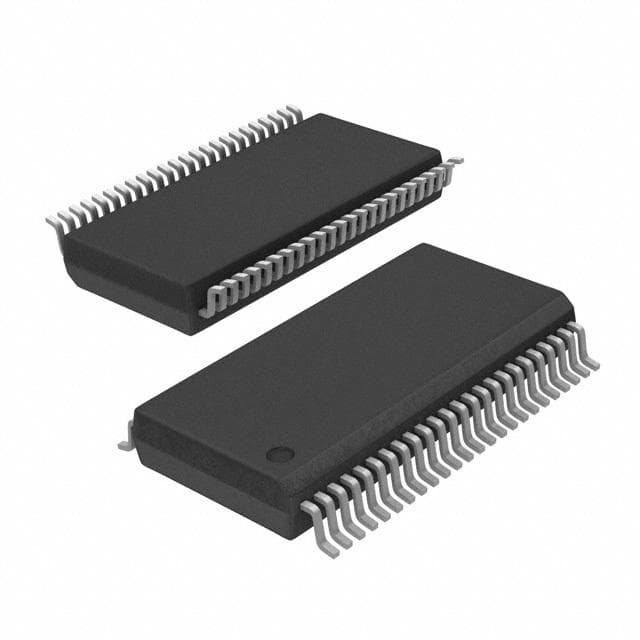

Using a neat TSSOP package, it works well. There is an external packaging option available for this voltage buffer. A logic device such as this has 48 terminations with different functions. Supply voltage is 3.3V. Family FCT includes the buffer IC . There are 48 pins set with the electric component. Surface Mount applications are possible with digital buffer. The connector has 48 pins. A total of 2 ports are available on this bus transceiver. Each element in the network transceiver contains 4 bits. As a matter of fact, it is a type of Bus Driver/Transceivers. A quiescent electronic part uses 10?A. This electronic part should be operated safely and steadily in a circuit by applying 3.3V supply voltage. Featuring MAX O/P SKEW = 0.5NS; TYP VOLP = 0.3V, automotive buffer better serves the needs of users. As low as -40°C can be used to operate itTemperatures above 85°C are not recommended for it to operate. Low-level output mode produces 8mA. Electronic parts operating in high-level output mode may conduct -8mA of current. This buffer should be run at a minimum voltage of 2.7V if it is to function properly. With respect to its maximum supply voltage, it is rated at 3.6V. This bus transceiver is referred to as BUS DRIVER logic. The number of outputs that can be generated is enough to make 16 outputs. A ENABLE LOW-control voltage buffer starts up.

74FCT163244CPAG8 Features

Bus Driver/Transceivers
MAX O/P SKEW = 0.5NS; TYP VOLP = 0.3V
High Level Output: 8mA
Low Level Output: -8mA
BUS DRIVER Logic IC

74FCT163244CPAG8 Applications

There are a lot of Integrated Device Technology (IDT)
74FCT163244CPAG8 Buffers & Transceivers applications.

Ethernet circuitry
Wired telephone
Cordless telephone
Desktop PC
Notebook
Pocket PC
Desktop radio
Clock radio
Tuner
Portable radio

Renesas 74FCT163244CPAG8
