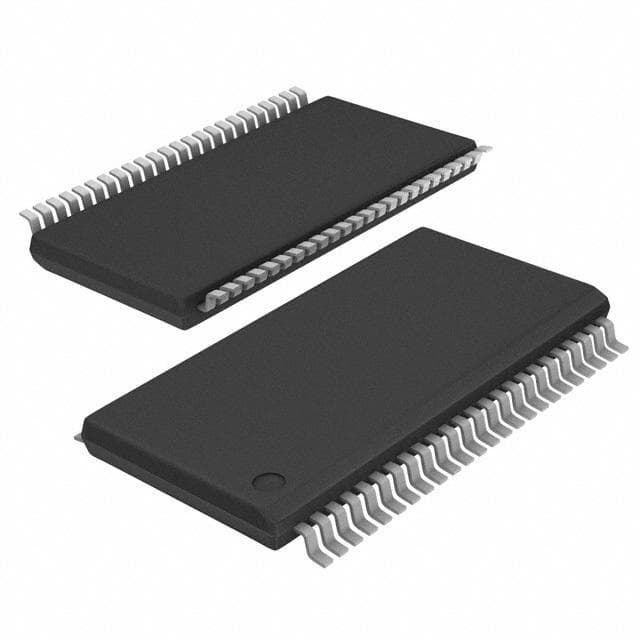

Renesas 74FCT16244ATPVG8

Manufacturer No:

74FCT16244ATPVG8

Manufacturer:

Renesas

Package:

SSOP

Description:

DUAL Buffers 48 Pins 4 Bit per Element SSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74FCT16244ATPVG8 information

Renesas 74FCT16244ATPVG8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 74FCT16244ATPVG8.

Type
Parameter

Factory Lead Time
7 Weeks

Contact Plating
Tin

Mount
Surface Mount

Package / Case
SSOP

Number of Pins
48

Packaging
Tape & Reel (TR)

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
48

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
POWER OFF DISABLE O/PS; IOH MAX DURATION < 1S; MAX OUTPUT SKEW = 0.5NS

Subcategory
Bus Driver/Transceivers

Packing Method
TAPE AND REEL

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
4

Supply Voltage
5V

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
48

Number of Outputs
16

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Polarity
Non-Inverting

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Load Capacitance
50pF

Number of Ports
2

Propagation Delay
6.2 ns

Quiescent Current
5?A

Family
FCT

Logic Function
Buffer, Inverting

Output Characteristics
3-STATE

Logic IC Type
BUS DRIVER

Number of Bits per Element
4

High Level Output Current
-32mA

Low Level Output Current
32mA

Control Type
ENABLE LOW

Length
15.9mm

Download datasheets and manufacturer documentation for Renesas 74FCT16244ATPVG8.

Datasheets:

integrateddevicetechnology-74fct16244atpvg8-datasheets-2905.pdf

74FCT16244ATPVG8 Overview

An interesting SSOP package is used. As part of the external packaging, this logical driver uses the Tape & Reel (TR) form factor. Logic device with 48 different terminations. There is a requirement for 5V of supply voltage. This electronic part belongs to the FCT family of parts. This electric component comes with 48 pins. Surface Mount applications can be used with digital buffer. A 48-pin connector is used. An enhanced bus transceiver with 2 ports is available. Each element employs 4 bits. An example of a Bus Driver/Transceivers type is this. It uses 5?A when quiescent. An electrical supply with 5V is recommended. There is usually a TAPE AND REEL package available. Using 5V supply voltage on this electronic part is recommended for running the part safely and stably in a circuit. In order to serve the user better, it features POWER OFF DISABLE O/PS; IOH MAX DURATION < 1S; MAX OUTPUT SKEW = 0.5NS. As low as -40°C is not a problem for it to operate. An ambient temperature of no more than 85°C should be used. The low-level output mode outputs 32mA. It is possible that the electronic part may conduct -32mA current in high-level output mode. It is strongly recommended that you use at least a voltage of 4.5V when operating this buffer. There is a maximum supply voltage rating of 5.5V. The BUS DRIVER logic bus transceiver is known as such. The amount of data required to make 16 outputs is sufficient. Voltage buffers using ENABLE LOW control start up automatically.
