NEXPERIA 74AUP1G80GX,125
NEXPERIA 74AUP1G80GX,125

NEXPERIA 74AUP1G80GX,125

Manufacturer No:

74AUP1G80GX,125

Manufacturer:

NEXPERIA

Package:

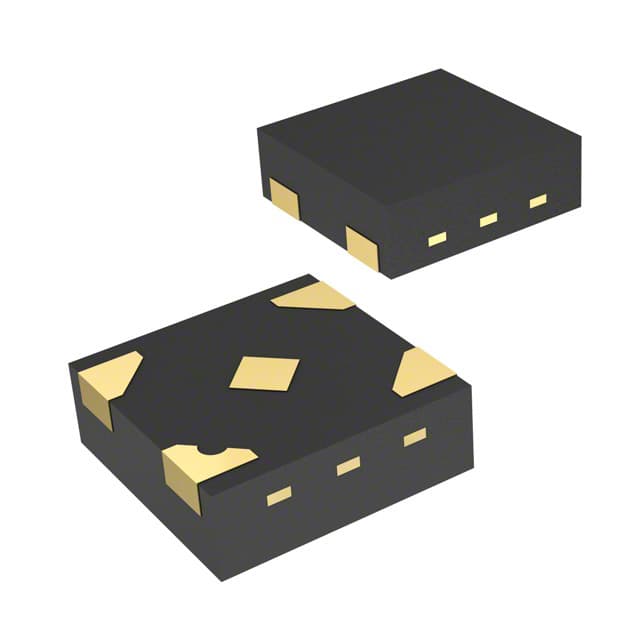

4-XFDFN Exposed Pad

Description:

0.8V~3.6V 309MHz 1 Bit D-Type Flip Flop BOTTOM 74AUP1G80 500nA 74AUP Series 4-XFDFN Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74AUP1G80GX,125 information

NEXPERIA 74AUP1G80GX,125 technical specifications, attributes, parameters and parts with similar specifications to NEXPERIA 74AUP1G80GX,125.

  • Type
  • Parameter
  • Factory Lead Time
  • 13 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 4-XFDFN Exposed Pad
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~125°C TA
  • Packaging
  • Tape & Reel (TR)
  • Series
  • 74AUP
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 5
  • Type
  • D-Type
  • Technology
  • CMOS
  • Voltage - Supply
  • 0.8V~3.6V
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BUTT
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Supply Voltage
  • 1.1V
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • 74AUP1G80
  • JESD-30 Code
  • S-PBCC-B5
  • Function
  • Standard
  • Output Type
  • Inverted
  • Number of Elements
  • 1
  • Supply Voltage-Max (Vsup)
  • 3.6V
  • Number of Bits
  • 1
  • Clock Frequency
  • 309MHz
  • Family
  • AUP/ULP/V
  • Current - Quiescent (Iq)
  • 500nA
  • Current - Output High, Low
  • 4mA 4mA
  • Max Propagation Delay @ V, Max CL
  • 6.4ns @ 3.3V, 30pF
  • Trigger Type
  • Positive Edge
  • Input Capacitance
  • 1.5pF
  • Propagation Delay (tpd)
  • 27.2 ns
  • Length
  • 0.8mm
  • Height Seated (Max)
  • 0.35mm
  • Width
  • 0.8mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NEXPERIA 74AUP1G80GX,125.

Datasheets:

PCN Packaging:

RohsStatement:

74AUP1G80GX,125 Overview


4-XFDFN Exposed Padis the way it is packaged. It is included in the package Tape & Reel (TR). Invertedis the output configured for it. JK flip flop uses Positive Edgeas the trigger. There is an electronic component mounted in the way of Surface Mount. Powered by a 0.8V~3.6Vvolt supply, it operates as follows. Currently, the operating temperature is -40°C~125°C TA. D-Typeis the type of this D latch. The 74AUPseries comprises this type of FPGA. It should not exceed 309MHzin terms of its output frequency. In total, it contains 1 elements. Despite external influences, it consumes 500nAof quiescent current. There are 5 terminations,The object belongs to the 74AUP1G80 family. Power is supplied from a voltage of 1.1V volts. Input capacitance of this device is 1.5pF farads. AUP/ULP/Vis the family of this D flip flop. Flip flops designed with 1bits are used in this part. Vsup reaches its maximum value at 3.6V. It is imperative that the supply voltage (Vsup) is maintained above 0.8Vin order to ensure normal operation.

74AUP1G80GX,125 Features


Tape & Reel (TR) package
74AUP series
1 Bits


74AUP1G80GX,125 Applications


There are a lot of Nexperia USA Inc.
74AUP1G80GX,125 Flip Flops applications.


  • Communications
  • Counters
  • Frequency Dividers
  • Shift Registers
  • Storage Registers
  • Bounce elimination switch
  • Data storage
  • Data transfer
  • Latch
  • Registers
