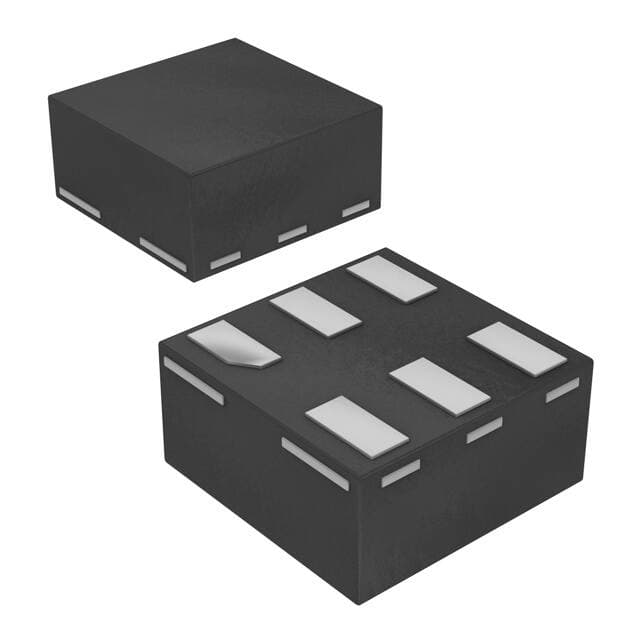

NEXPERIA 74AUP1G175GN,132
NEXPERIA 74AUP1G175GN,132

NEXPERIA 74AUP1G175GN,132

Manufacturer No:

74AUP1G175GN,132

Manufacturer:

NEXPERIA

Package:

6-XFDFN

Description:

0.8V~3.6V 300MHz 1 Bit D-Type Flip Flop DUAL 74AUP1G175 6 Pins 500nA 74AUP Series 6-XFDFN

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74AUP1G175GN,132 information

NEXPERIA 74AUP1G175GN,132 technical specifications, attributes, parameters and parts with similar specifications to NEXPERIA 74AUP1G175GN,132.

  • Type
  • Parameter
  • Factory Lead Time
  • 13 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 6-XFDFN
  • Number of Pins
  • 6
  • Operating Temperature
  • -40°C~125°C TA
  • Packaging
  • Tape & Reel (TR)
  • Series
  • 74AUP
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 6
  • Type
  • D-Type
  • Terminal Finish
  • Tin (Sn)
  • Technology
  • CMOS
  • Voltage - Supply
  • 0.8V~3.6V
  • Terminal Position
  • DUAL
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Supply Voltage
  • 1.1V
  • Terminal Pitch
  • 0.3mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • 74AUP1G175
  • Function
  • Reset
  • Number of Elements
  • 1
  • Polarity
  • Non-Inverting
  • Supply Voltage-Min (Vsup)
  • 0.8V
  • Number of Bits
  • 1
  • Clock Frequency
  • 300MHz
  • Propagation Delay
  • 12 ns
  • Turn On Delay Time
  • 21.1 ns
  • Family
  • AUP/ULP/V
  • Current - Quiescent (Iq)
  • 500nA
  • Current - Output High, Low
  • 4mA 4mA
  • Max Propagation Delay @ V, Max CL
  • 5.7ns @ 3.3V, 30pF
  • Trigger Type
  • Positive Edge
  • Input Capacitance
  • 0.8pF
  • Clock Edge Trigger Type
  • Positive Edge
  • Height Seated (Max)
  • 0.35mm
  • Width
  • 0.9mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NEXPERIA 74AUP1G175GN,132.

Datasheets:

PCN Packaging:

RohsStatement:

74AUP1G175GN,132 Overview


The flip flop is packaged in 6-XFDFN. Package Tape & Reel (TR)embeds it. As configured, the output uses Non-Inverted. In the configuration of the trigger, Positive Edgeis used. There is an electrical part that is mounted in the way of Surface Mount. With a supply voltage of 0.8V~3.6V volts, it operates. It is operating at -40°C~125°C TA. Logic flip flops of this type are classified as D-Type. FPGAs belonging to the 74AUPseries contain this type of chip. It should not exceed 300MHzin its output frequency. In total, there are 1 elements. There is a consumption of 500nAof quiescent energy. Currently, there are 6 terminations. The 74AUP1G175family includes it. The D flip flop is powered by a voltage of 1.1V . This JK flip flop has a 0.8pFfarad input capacitance. Devices in the AUP/ULP/Vfamily are electronic devices. A part of the electronic system is mounted in the way of Surface Mount. This board is designed with 6pins on it. This device has Positive Edgeas its clock edge trigger type. An electronic part designed with 1bits is used in this application. A normal operating voltage (Vsup) should remain above 0.8V.

74AUP1G175GN,132 Features


Tape & Reel (TR) package
74AUP series
6 pins
1 Bits


74AUP1G175GN,132 Applications


There are a lot of Nexperia USA Inc.
74AUP1G175GN,132 Flip Flops applications.


  • Bounce elimination switch
  • Data storage
  • Data transfer
  • Latch
  • Registers
  • Memory
  • Frequency division
  • Memory
  • Event Detectors
  • Data Synchronizers
