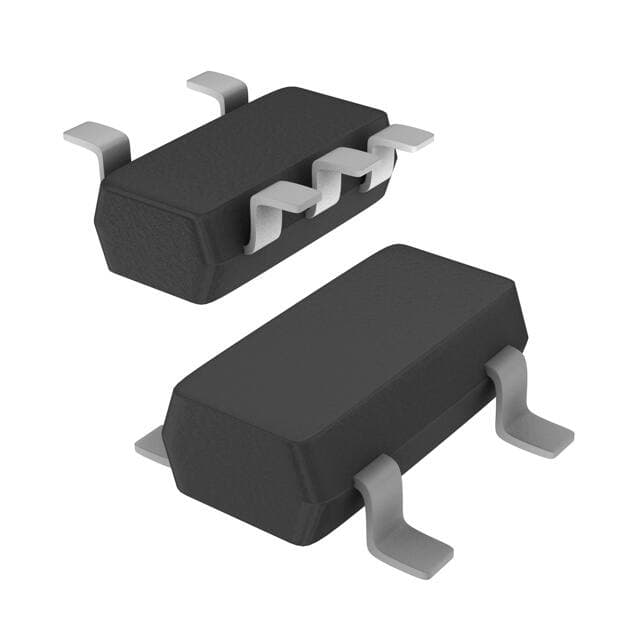

NEXPERIA 74AHC1G66GV,125

Manufacturer No:

74AHC1G66GV,125

Manufacturer:

NEXPERIA

Package:

SC-74A, SOT-753

Description:

11ns, 11ns SPST - NO 22Ohm DUAL Analog Switches 74AHC1G66 5 Pins 100nA 5V SC-74A, SOT-753

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74AHC1G66GV,125 information

NEXPERIA 74AHC1G66GV,125 technical specifications, attributes, parameters and parts with similar specifications to NEXPERIA 74AHC1G66GV,125.

Type
Parameter

Factory Lead Time
4 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SC-74A, SOT-753

Number of Pins
5

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

Published
2008

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

Resistance
22Ohm

Terminal Finish
Tin (Sn)

Max Power Dissipation
250mW

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
74AHC1G66

Pin Count
5

Number of Channels
1

Max Supply Voltage
5.5V

Min Supply Voltage
2V

Operating Supply Current
1?A

Nominal Supply Current
75mA

Power Dissipation
250mW

Max Supply Current
75mA

Throw Configuration
SPST

Turn On Delay Time
35 ns

Number of Inputs
1

Supply Type
Single

Turn-Off Delay Time
35 ns

-3db Bandwidth
280MHz

On-State Resistance (Max)
22Ohm

Multiplexer/Demultiplexer Circuit
1:1

Off-state Isolation-Nom
50 dB

Current - Leakage (IS(off)) (Max)
100nA

Channel Capacitance (CS(off), CD(off))
10pF

Switch Circuit
SPST - NO

Switch Time (Ton, Toff) (Max)
11ns, 11ns

Voltage - Supply, Single (V+)
2V~5.5V

Length
2.9mm

Radiation Hardening
No

Download datasheets and manufacturer documentation for NEXPERIA 74AHC1G66GV,125.

74AHC1G66GV,125 Overview

The electronic part can be shipped overseas conveniently because it is packaged in SC-74A, SOT-753. In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. There is an analog multiplexer mounted in position Surface Mount. There is 1:1 ratio between the number of multiplexers and demultiplexers. Around -40°C~125°C TA is the extended operating temperature. In total, there are 5 terminations. This electronic part offers high-quality output due to its 1 channels. In the case of a voltage supply of 5V volts, the electrical part can be powered up and run. There are 5 pins injected into the electronic part body. The analog switch ics are built using SPST - NO switching circuits. Search with 74AHC1G66 if you are looking for analog multiplexer variants. It has an internal resistance of 22Ohm. The functions of 5 pins can be found in the datasheets. In normalcircumstances, users should not exceed 5.5V volts for the multiplexer. Single supply type digital switch with a low cost. 2V is the lowest voltage that should be fed to the electronic electronic part. In order to operate this switch device, it would need a current of 1?A. A voltage of 2V~5.5V is required to drain this analog switch from a single voltage supply. A digital multiplexer may suffer damage if voltage is applied above 75mA. There is a voltage range of 5V operating voltages for the electrical part. There are 1 inputs to be operated.

74AHC1G66GV,125 Features

1 Channels
Switch Circuit: SPST - NO
1?A Supply Current
-3db Bandwidth: 280MHz

74AHC1G66GV,125 Applications

There are a lot of Nexperia USA Inc.
74AHC1G66GV,125 Analog Switches & Multiplexers ICs applications.

Isolation
Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
