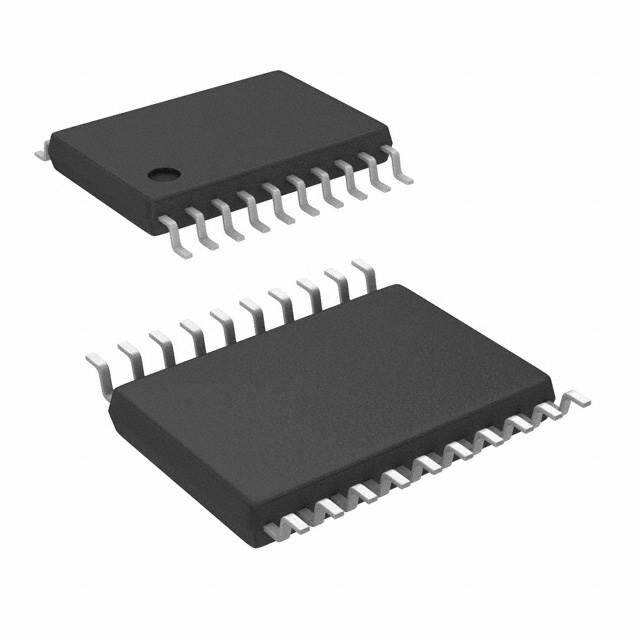

Rochester 74AC573MTCX

Manufacturer No:

74AC573MTCX

Manufacturer:

Rochester

Package:

20-TSSOP (0.173, 4.40mm Width)

Description:

2V~6V 8 Bits Tri-State Latches 74AC Series 20 Pins DUAL CMOS 20-TSSOP (0.173, 4.40mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74AC573MTCX information

Rochester 74AC573MTCX technical specifications, attributes, parameters and parts with similar specifications to Rochester 74AC573MTCX.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
20-TSSOP (0.173, 4.40mm Width)

Surface Mount
YES

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
74AC

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

Terminal Finish
MATTE TIN

Additional Feature
BROADSIDE VERSION OF 373

Technology
CMOS

Voltage - Supply
2V~6V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Reach Compliance Code
unknown

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
20

Output Type
Tri-State

Circuit
8:8

Supply Voltage-Max (Vsup)
6V

Supply Voltage-Min (Vsup)
2V

Number of Ports
2

Number of Bits
8

Family
AC

Output Characteristics
3-STATE

Current - Output High, Low
24mA 24mA

Logic Type
D-Type Transparent Latch

Output Polarity
TRUE

Independent Circuits
1

Delay Time - Propagation
8.5ns

Length
6.5mm

Width
4.4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rochester 74AC573MTCX.

74AC573MTCX Overview

Package 20-TSSOP (0.173, 4.40mm Width) includes it. A package of Tape & Reel (TR) has been used. There is a Tri-State output configured. There is a logic type of D-Type Transparent Latch for this electrical device. A Surface Mount mount is used for mounting this electronic part. A 2V~6V voltage supply is required for operation. A temperature of -40°C~85°C is set as the operating temperature. There are a number of FPGAs in this series, including this one. The electronic part in this image has 8 bits. As far as this device is concerned, it has no terminations. The device is operated when the supply voltage is set to 3.3V. There are 20 pins on it. It is part of the family of electronic devices called AC. This device has 2 ports that can be connected to it. During this period, the maximum supply voltage (Vsup) reaches 6V. A voltage greater than 2V must be supplied as a power supply (Vsup). In addition to that, it is also characterized by BROADSIDE VERSION OF 373.

74AC573MTCX Features

20-TSSOP (0.173, 4.40mm Width) package
74AC series
8 Bits
20 pin count

74AC573MTCX Applications

There are a lot of Rochester Electronics, LLC
74AC573MTCX Latches applications.

Hammer
Parallel data storage
Digital bus buffer
Flip-flops
Parallel data synchronization
Parallel data storage
Shift register
Pattern generators
Automotive Infotainment
Automotive Cluster
