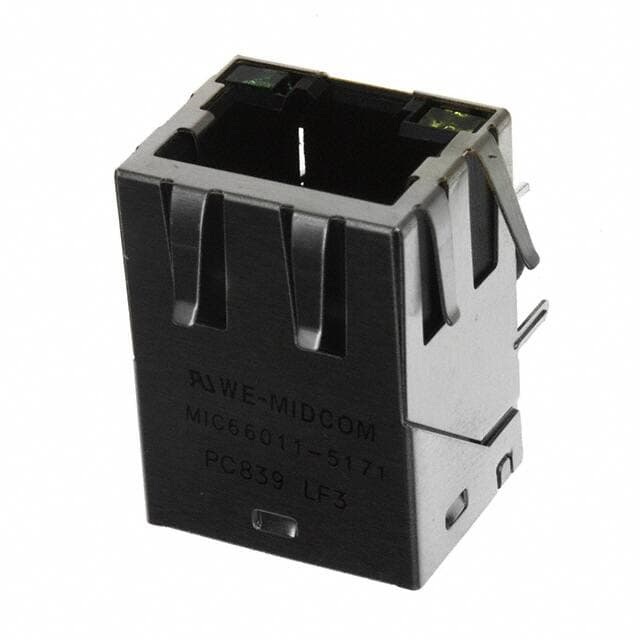

WURTH 7499211121A
WURTH 7499211121A

WURTH 7499211121A

Manufacturer No:

7499211121A

Manufacturer:

WURTH

Package:

Metal

Description:

CONN MAGJACK 1PORT 100 BASE-T

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

7499211121A information

WURTH 7499211121A technical specifications, attributes, parameters and parts with similar specifications to WURTH 7499211121A.

  • Type
  • Parameter
  • Factory Lead Time
  • 13 Weeks
  • Contact Plating
  • Gold
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Metal
  • Housing Material
  • Thermoplastic
  • Shield Material
  • Copper Alloy
  • Contact Materials
  • Tin
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tube
  • Series
  • WE-RJ45 LAN
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • RJ45
  • Number of Positions
  • 8
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Color
  • Green, Silver, Yellow
  • Applications
  • 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)
  • Number of Rows
  • 1
  • Gender
  • Female
  • Pitch
  • 2.54mm
  • Orientation
  • 90° Angle (Right)
  • Depth
  • 21.84mm
  • Contact Finish
  • Gold
  • Number of Contacts
  • 8
  • Number of Ports
  • 1
  • Direction
  • Down
  • LED Color
  • Yellow - Green
  • Tab Direction
  • Down
  • Number of Cores per Jack
  • 6
  • Features
  • Board Guide
  • Length
  • 13.95mm
  • Width
  • 15.88mm
  • Contact Finish Thickness
  • 30.0μin 0.76μm
  • Height Above Board
  • 0.549 13.95mm
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for WURTH 7499211121A.

Datasheets:

Environmental Information:

PCN Design/Specification:

Description: The Wurth Elektronik Modular Connectors - Jacks With Magnetics 7499211121A is a single-port 100 BASE-T modular connector with integrated magnetics. It is designed to provide reliable and secure connections for Ethernet applications.

Features:
- Single-port 100 BASE-T modular connector with integrated magnetics
- Designed to provide reliable and secure connections for Ethernet applications
- Low profile design for easy installation
- Compatible with standard RJ45 plugs
- High-speed data transmission up to 100 Mbps
- Low insertion loss and return loss
- RoHS compliant

Applications: The Wurth Elektronik Modular Connectors - Jacks With Magnetics 7499211121A is suitable for a wide range of Ethernet applications, including routers, switches, hubs, and other networking equipment. It is also suitable for use in industrial automation, medical, and automotive applications.
