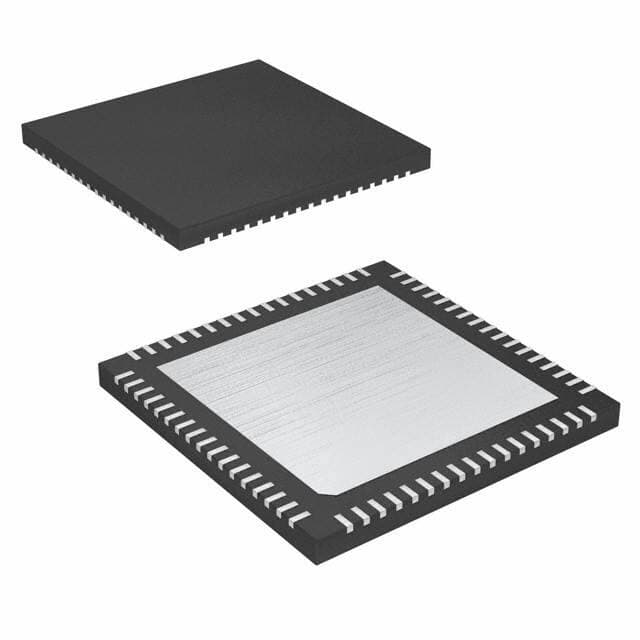

ADI 73S1209F-68IMR/F/P

Manufacturer No:

73S1209F-68IMR/F/P

Manufacturer:

ADI

Package:

68-VFQFN Exposed Pad

Description:

32KB 32K x 8 FLASH 80515 8-Bit Microcontroller 73S12xx Series 73S1209F 24MHz 68-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

73S1209F-68IMR/F/P information

ADI 73S1209F-68IMR/F/P technical specifications, attributes, parameters and parts with similar specifications to ADI 73S1209F-68IMR/F/P.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
68-VFQFN Exposed Pad

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
73S12xx

Published
2008

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Frequency
24MHz

Base Part Number
73S1209F

Interface
I2C, UART, USART

Oscillator Type
Internal

Number of I/O
9

RAM Size
2K x 8

Voltage - Supply (Vcc/Vdd)
2.7V~5.5V

Core Processor
80515

Peripherals
LED, POR, WDT

Program Memory Type
FLASH

Core Size
8-Bit

Program Memory Size
32KB 32K x 8

Connectivity
I2C, SmartCard, UART/USART

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI 73S1209F-68IMR/F/P.

Datasheets:

maximintegrated-73s1209f44imrf-datasheets-0597.pdf

ConflictMineralStatement:

maximintegrated-ds1075z66n-conflictmineralstatement-7504.pdf

73S1209F-68IMR/F/P Overview

The package has a 68-VFQFN Exposed Pad shape. With 9 I/Os, it's pretty good. The Microcontroller's mounting type is Surface Mount and this IC chip has the following features. As the name implies, this Microcontroller is based on the 8-Bit core. As far as its program memory type is concerned, it is FLASH. Temperatures within -40°C~85°C TA range are measured by this Microcontroller. The 73S12xx series is comprised of this electrical component. The electronic part has a program memory size of 32KB 32K x 8. There's a 80515 Core Processor inside. It is possible to find alternatives to the base part number 73S1209F by using the part number search tool. An effective performance can be achieved at a frequency of 24MHz.
