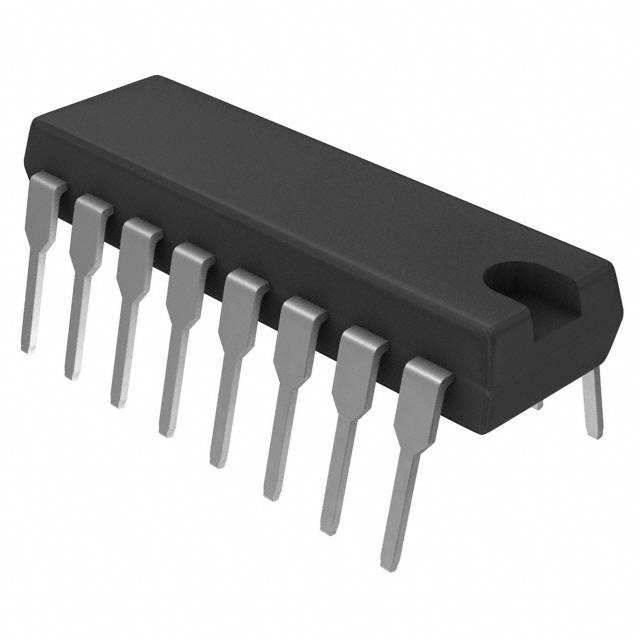

Renesas 72401L10P

Manufacturer No:

72401L10P

Manufacturer:

Renesas

Package:

PDIP

Description:

16 Terminations 5V 16 Pin FIFO memory IC 32B 55 ns Min 4.5V V Max 5.5V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

72401L10P information

Renesas 72401L10P technical specifications, attributes, parameters and parts with similar specifications to Renesas 72401L10P.

Type
Parameter

Contact Plating
Lead, Tin

Mount
Through Hole

Package / Case
PDIP

Number of Pins
16

Published
2009

JESD-609 Code
e0

Pbfree Code
no

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
FALL THRU 65NS

Subcategory
FIFOs

Technology
CMOS

Peak Reflow Temperature (Cel)
245

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
2.54mm

Pin Count
16

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
COMMERCIAL

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Memory Size
32B

Element Configuration
Dual

Nominal Supply Current
35mA

Max Supply Current
35mA

Frequency (Max)
10MHz

Access Time
55 ns

Data Bus Width
4b

Organization
64X4

Density
256 b

Parallel/Serial
PARALLEL

Sync/Async
Asynchronous

Word Size
4b

Memory IC Type
OTHER FIFO

Bus Directional
Unidirectional

Retransmit Capability
No

Output Enable
NO

Length
19mm

Width
7.62mm

Thickness
3.3mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas 72401L10P.

Datasheets:

integrateddevicetechnology-72401l10p-datasheets-2726.pdf

72401L10P Overview

FIFO memory chip is included in the PDIP package.Data and applications can be stored in the FIFO chip's 32B memory.Memory IC's recommended mounted way is Through Hole .It is possible to achieve high efficiency with a supply voltage of 5V .FIFO means contains 16 terminations.16 pins are the operation pins.There is a maximum current requirement of 35mA for its operation.FIFO is recommended that the supply voltage be set to 5V for maximum efficiency.It is designed to run at a minimum temperature of 0°C degrees Celsius to ensure reliability.The memory logic's maximum operating temperature is 70°C °C, which allows for stable operation.FIFOs contains this gadget in its entirety.This part is equipped with an IC of type OTHER FIFO memory.The FIFO memory chip may be operated at very low supply voltages, such as4.5V volts.FIFO memory is capable of handling a maximum supply voltage of 5.5V volts.There are a total of 16 pins on this FIFO memory IC.The memory logic's maximum value is 10MHz for regular operation.There are normally 5V power supplies attached to the component.This gadget can also be used to generate FALL THRU 65NS .FIFO memory chip offers enhanced flexibility due to its use of 1 circuits.

72401L10P Features

32B memory size
FIFOs category
Frequency at most

72401L10P Applications

There are a lot of Integrated Device Technology (IDT)
72401L10P FIFOs Memory applications.

Data
Telecommunication
Network switching/routing
Computer networks
Network bridges
Switches
Routers
Cameras
Multimedia
TVs
