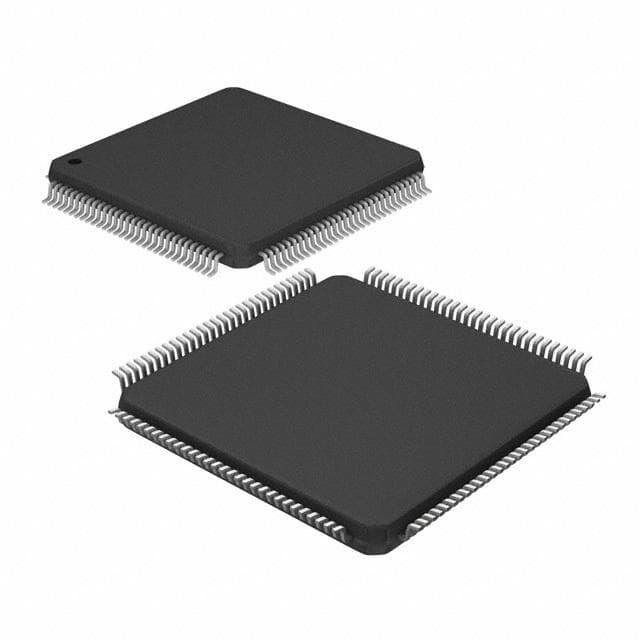

Renesas 723642L15PFG

Manufacturer No:

723642L15PFG

Manufacturer:

Renesas

Package:

TQFP

Description:

120 Terminations 5V 120 Pin FIFO memory IC 9kB 10 ns Min 4.5V V Max 5.5V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

723642L15PFG information

Renesas 723642L15PFG technical specifications, attributes, parameters and parts with similar specifications to Renesas 723642L15PFG.

Type
Parameter

Factory Lead Time
7 Weeks

Contact Plating
Tin

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
120

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
120

ECCN Code
EAR99

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
MAILBOX

Subcategory
FIFOs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.4mm

Time@Peak Reflow Temperature-Max (s)
30

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
COMMERCIAL

Number of Circuits
2

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Memory Size
9kB

Max Supply Current
400mA

Clock Frequency
66.7MHz

Frequency (Max)
83MHz

Access Time
10 ns

Data Bus Width
36b

Organization
1KX36

Standby Current-Max
0.001A

Memory Density
36864 bit

Parallel/Serial
PARALLEL

Memory IC Type
BI-DIRECTIONAL FIFO

Bus Directional
Bidirectional

Retransmit Capability
No

FWFT Support
Yes

Output Enable
YES

Cycle Time
15 ns

Height
1.4mm

Download datasheets and manufacturer documentation for Renesas 723642L15PFG.

Datasheets:

integrateddevicetechnology-723642l15pfg-datasheets-0549.pdf

723642L15PFG Overview

You will find FIFO memory chip in the TQFP package.There is a 9kB MB memory on the FIFO chips, which can be used to store both applications and data.Mounting it in the Surface Mount way is recommended.Supply voltages of 5V are capable of achieving high efficiency.The number of terminations in FIFO means is 120 .There are 120 pins on the operation pins.Its maximum operating current is 400mA .A voltage of 5V should be used for FIFO's maximum efficiency.During operation, a minimum temperature of 0°C degrees Celsius should be maintained in order to ensure reliability.Its maximum operating temperature of 70°C °C ensures stable operation.The gadget is self-contained and can be found in FIFOs .The IC of the part is of the type BI-DIRECTIONAL FIFO .There is a possibility that FIFO may operate at a very low supply voltage, such as 4.5V V.A maximum supply voltage of 5.5V V can be handled by this FIFO memory chip.Approximately 120 pins are attached to it.Regular operation has a FIFO memory's maximum value of 83MHz .A component normally has 5V power supplies attached to it.It is also possible to generate MAILBOX by using this FIFO memory.A clock on the FIFO memory IC runs at a frequency of 66.7MHz .Through the use of 2 circuits, FIFO memory chip is able to achieve enhanced flexibility.

723642L15PFG Features

9kB memory size
FIFOs category
Frequency at most
Clock frequency of 66.7MHz

723642L15PFG Applications

There are a lot of Integrated Device Technology (IDT)
723642L15PFG FIFOs Memory applications.

Network switching/routing
Computer networks
Network bridges
Switches
Routers
Cameras
Multimedia
TVs
Computers
Disk Controllers
