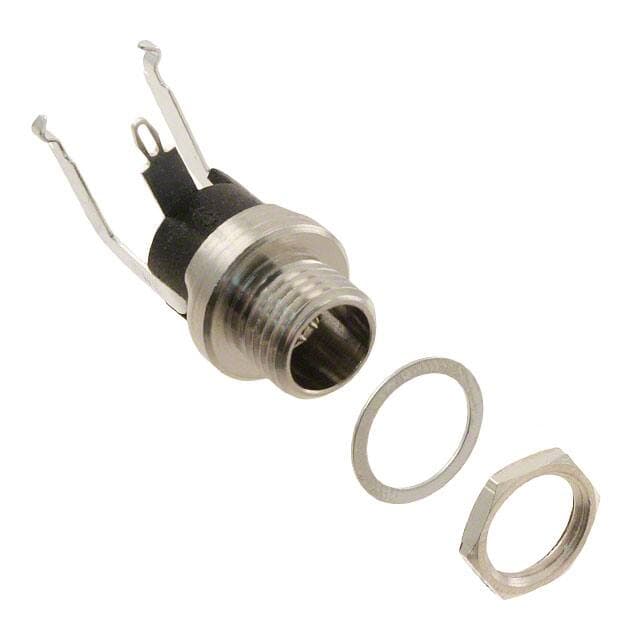

Switchcraft Inc. 722RA

Manufacturer No:

722RA

Manufacturer:

Switchcraft Inc.

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

722RA information

Switchcraft Inc. 722RA technical specifications, attributes, parameters and parts with similar specifications to Switchcraft Inc. 722RA.

Type
Parameter

Factory Lead Time
8 Weeks

Contact Material
Copper Alloy

Mount
Panel, Through Hole

Mounting Type
Through Hole, Right Angle

Mounting Feature
Bulkhead - Front Side Nut

Material
Plastic

Housing Material
Thermoplastic

Body Material
Copper Alloy

Contact Material - Plating
Nickel

Packaging
Bulk

Published
1999

Feature
Mounting Hardware, Thread Lock

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
3

Termination
Solder

ECCN Code
EAR99

Connector Type
Jack

Gender
Male

Voltage - Rated DC
12V

Contact Finish - Mating
NOT SPECIFIED

MIL Conformance
NO

DIN Conformance
NO

Option
GENERAL PURPOSE

Pitch
3.3mm

Orientation
Right Angle

Shielding
Unshielded

Current Rating
5A

Insulation Color
Silver

Number of Contacts
8

Contact Gender
Female

Housing Color
Black

Contact Resistance
10mOhm

Insulation Resistance
1GOhm

Max Current Rating
5A

Number of Ports
1

Max Voltage Rating (DC)
12V

Thread Size
5/16-32

Number of Positions/Contacts
2 Conductors, 2 Contacts

Includes
3 pcs - 1 Connector, 1 Nut, 1 Washer

Internal Switch(s)
Single Switch, Normally Closed

Body Color
Silver, Black

Pin Diameter
2 mm

Rated Current (Power)
5A

Length
9.5mm

REACH SVHC
No SVHC

Download datasheets and manufacturer documentation for Switchcraft Inc. 722RA.

Description:

The Switchcraft 722RA Barrel Power Connector is a two-piece, solder-type power connector designed for use in a variety of applications. It features a rugged, all-metal construction and a reliable, secure connection. The 722RA is designed to provide a reliable connection for power supplies, amplifiers, and other power-related applications.

Features:

? All-metal construction for durability and reliability
? Secure connection for power supplies, amplifiers, and other power-related applications
? Easy to install and use
? Rated for up to 10A at 250V
? RoHS compliant

Applications:

The Switchcraft 722RA Barrel Power Connector is ideal for use in a variety of applications, including power supplies, amplifiers, and other power-related applications. It is also suitable for use in industrial, commercial, and residential applications.
