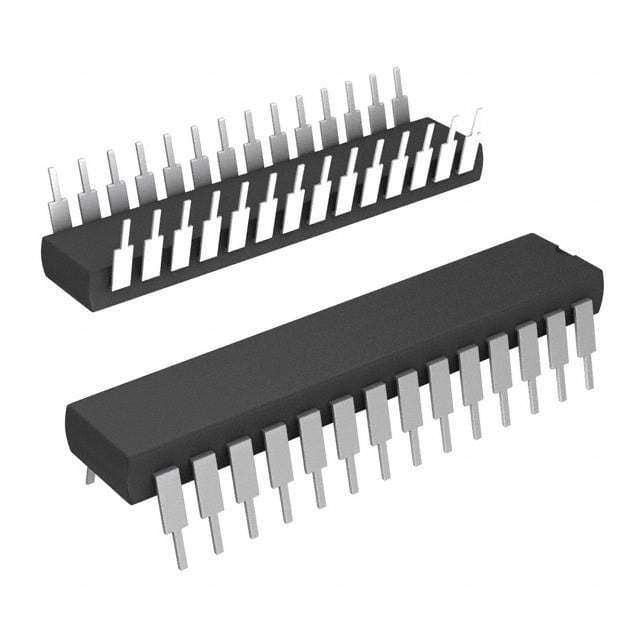

Renesas 7204L15TPGI

Manufacturer No:

7204L15TPGI

Manufacturer:

Renesas

Package:

DIP

Description:

28 Terminations 5V 28 Pin FIFO memory IC 15 ns Min 4.5V V Max 5.5V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

7204L15TPGI information

Renesas 7204L15TPGI technical specifications, attributes, parameters and parts with similar specifications to Renesas 7204L15TPGI.

Type
Parameter

Factory Lead Time
7 Weeks

Contact Plating
Tin

Mount
Through Hole

Package / Case
DIP

Number of Pins
28

Published
2010

JESD-609 Code
e3

Pbfree Code
yes

Number of Terminations
28

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
RETRANSMIT

HTS Code
8542.32.00.71

Subcategory
FIFOs

Technology
CMOS

Terminal Position
DUAL

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
2.54mm

Pin Count
28

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Min Supply Voltage
4.5V

Max Supply Current
120mA

Clock Frequency
40MHz

Access Time
15 ns

Organization
4KX9

Memory Width
9

Standby Current-Max
0.012A

Memory Density
36864 bit

Parallel/Serial
PARALLEL

Memory IC Type
OTHER FIFO

Bus Directional
Unidirectional

Retransmit Capability
Yes

FWFT Support
No

Output Enable
NO

Cycle Time
25 ns

Length
34.671mm

Height Seated (Max)
4.572mm

Width
7.62mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 7204L15TPGI.

Datasheets:

integrateddevicetechnology-7204l15tpgi-datasheets-2926.pdf

7204L15TPGI Overview

DIP is a package that contains FIFO memory chip.A Through Hole mounting method is recommended.When the supply voltage is 5V , high efficiency is possible.I found that it has 28 terminations in FIFO means.These are the 28 pins for operation.For its operation, 120mA is the maximum current required.A 5V supply voltage will ensure FIFO's maximum efficiency.Keeping the temperature at -40°C degrees Celsius ensures its reliability.By operating at 85°C degrees Celsius, this FIFO products is able to maintain a stable operation.In FIFOs , this gadget is self-contained.In this part, the memory type is OTHER FIFO .In some cases, FIFO operates at a very low supply voltage, such as 4.5V V.A maximum supply voltage of 5.5V volts can be handled by the FIFO memory chip.As a result, it contains a total of 28 pins.In normal circumstances, the component has 5V power supplies.This gadget can also generate RETRANSMIT .There is 40MHz frequency set for the clock of the FIFO memory IC.

7204L15TPGI Features

FIFOs category
Clock frequency of 40MHz

7204L15TPGI Applications

There are a lot of Integrated Device Technology (IDT)
7204L15TPGI FIFOs Memory applications.

Cameras
Multimedia
TVs
Computers
Disk Controllers
Communications
Networking
Multi-stage synchronizer
Signal processing
Data communications

User Guide
