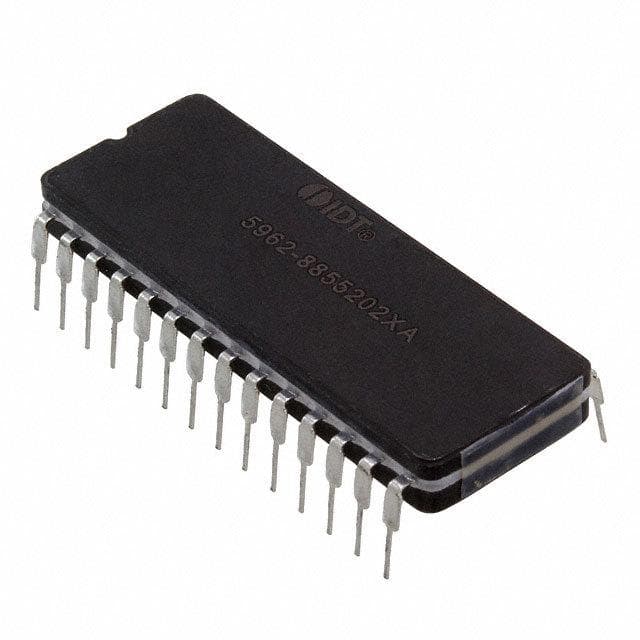

Renesas 7203L20DB

Manufacturer No:

7203L20DB

Manufacturer:

Renesas

Package:

CDIP

Description:

28 Terminations 5V 28 Pin FIFO memory IC 20 ns Min 4.5V V Max 5.5V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

7203L20DB information

Renesas 7203L20DB technical specifications, attributes, parameters and parts with similar specifications to Renesas 7203L20DB.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Plating
Lead, Tin

Mount
Through Hole

Package / Case
CDIP

Number of Pins
28

Packaging
Bulk

Published
2005

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Additional Feature
RETRANSMIT

HTS Code
8542.32.00.71

Subcategory
FIFOs

Technology
CMOS

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
2.54mm

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
MILITARY

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Element Configuration
Dual

Nominal Supply Current
150mA

Max Supply Current
150mA

Clock Frequency
33.3MHz

Access Time
20 ns

Organization
2KX9

Density
18 kb

Standby Current-Max
0.004A

Screening Level
MIL-STD-883 Class B

Parallel/Serial
PARALLEL

Sync/Async
Asynchronous

Word Size
9b

Memory IC Type
OTHER FIFO

Bus Directional
Unidirectional

Retransmit Capability
Yes

FWFT Support
No

Output Enable
NO

Cycle Time
30 ns

Download datasheets and manufacturer documentation for Renesas 7203L20DB.

Datasheets:

integrateddevicetechnology-7203l20db-datasheets-5039.pdf

7203L20DB Overview

You will find FIFO memory chip in the CDIP package.There's a Bulk on the package.Mounting it in the Through Hole way is recommended.Supply voltages of 5V are capable of achieving high efficiency.The number of terminations in FIFO means is 28 .There are 28 pins on the operation pins.Its maximum operating current is 150mA .A voltage of 5V should be used for FIFO's maximum efficiency.During operation, a minimum temperature of -55°C degrees Celsius should be maintained in order to ensure reliability.Its maximum operating temperature of 125°C °C ensures stable operation.The gadget is self-contained and can be found in FIFOs .The IC of the part is of the type OTHER FIFO .There is a possibility that FIFO may operate at a very low supply voltage, such as 4.5V V.A maximum supply voltage of 5.5V V can be handled by this FIFO memory chip.Approximately 28 pins are attached to it.A component normally has 5V power supplies attached to it.It is also possible to generate RETRANSMIT by using this FIFO memory.A clock on the FIFO memory IC runs at a frequency of 33.3MHz .

7203L20DB Features

FIFOs category
Clock frequency of 33.3MHz

7203L20DB Applications

There are a lot of Integrated Device Technology (IDT)
7203L20DB FIFOs Memory applications.

Network switching/routing
Computer networks
Network bridges
Switches
Routers
Cameras
Multimedia
TVs
Computers
Disk Controllers
