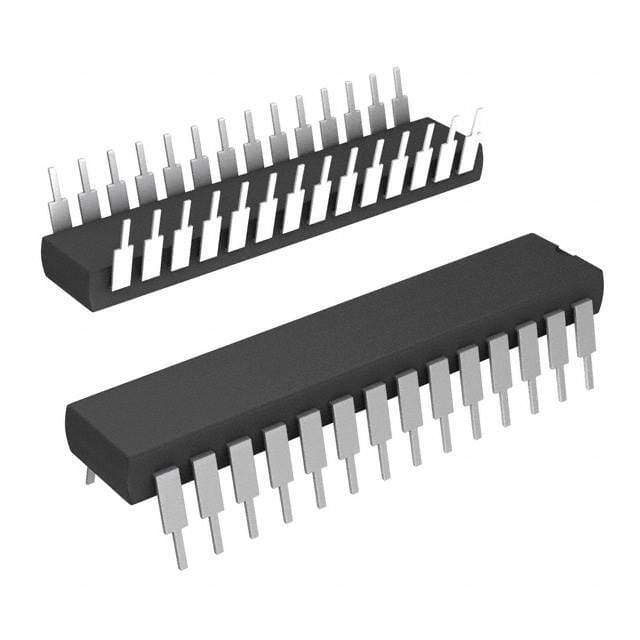

Renesas 7201LA20TP

Manufacturer No:

7201LA20TP

Manufacturer:

Renesas

Package:

PDIP

Description:

28 Terminations 5V 28 Pin FIFO memory IC 20 ns Min 4.5V V Max 5.5V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

7201LA20TP information

Renesas 7201LA20TP technical specifications, attributes, parameters and parts with similar specifications to Renesas 7201LA20TP.

Type
Parameter

Contact Plating
Lead, Tin

Mount
Through Hole

Package / Case
PDIP

Number of Pins
28

Published
2005

JESD-609 Code
e0

Pbfree Code
no

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
RETRANSMIT

HTS Code
8542.32.00.71

Subcategory
FIFOs

Technology
CMOS

Peak Reflow Temperature (Cel)
245

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
2.54mm

Pin Count
28

Operating Supply Voltage
5V

Temperature Grade
COMMERCIAL

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Element Configuration
Dual

Nominal Supply Current
80mA

Max Supply Current
80mA

Clock Frequency
33.33MHz

Access Time
20 ns

Organization
512X9

Density
4.5 kb

Standby Current-Max
0.0005A

Parallel/Serial
PARALLEL

Sync/Async
Asynchronous

Word Size
9b

Memory IC Type
OTHER FIFO

Bus Directional
Unidirectional

Retransmit Capability
Yes

FWFT Support
No

Output Enable
NO

Cycle Time
30 ns

Length
34.3mm

Height Seated (Max)
4.572mm

Width
7.62mm

Download datasheets and manufacturer documentation for Renesas 7201LA20TP.

Datasheets:

integrateddevicetechnology-7201la20tp-datasheets-2752.pdf

7201LA20TP Overview

FIFO memory chip is included in the PDIP package.Memory IC's recommended mounted way is Through Hole .It is possible to achieve high efficiency with a supply voltage of 5V .FIFO means contains 28 terminations.28 pins are the operation pins.There is a maximum current requirement of 80mA for its operation.FIFO is recommended that the supply voltage be set to 5V for maximum efficiency.It is designed to run at a minimum temperature of 0°C degrees Celsius to ensure reliability.The memory logic's maximum operating temperature is 70°C °C, which allows for stable operation.FIFOs contains this gadget in its entirety.This part is equipped with an IC of type OTHER FIFO memory.The FIFO memory chip may be operated at very low supply voltages, such as4.5V volts.FIFO memory is capable of handling a maximum supply voltage of 5.5V volts.There are a total of 28 pins on this FIFO memory IC.There are normally 5V power supplies attached to the component.This gadget can also be used to generate RETRANSMIT .The FIFO memory IC is controlled by a clock with a frequency of 33.33MHz .
