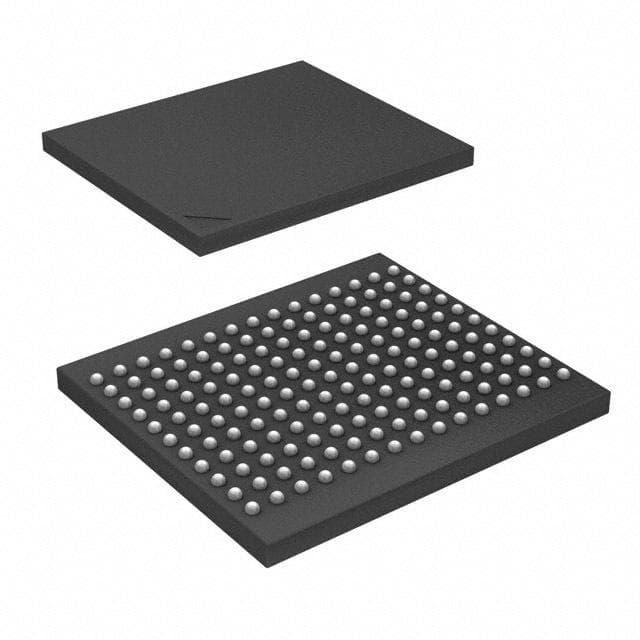

Renesas 71V3556SA166BQ

Manufacturer No:

71V3556SA166BQ

Manufacturer:

Renesas

Package:

Description:

Surface Mount 165 Pin Memory IC 4.5 Mb kb 15mm mm 350mA mA 36b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

71V3556SA166BQ information

Renesas 71V3556SA166BQ technical specifications, attributes, parameters and parts with similar specifications to Renesas 71V3556SA166BQ.

Type
Parameter

Factory Lead Time
11 Weeks

Mount
Surface Mount

Number of Pins
165

Published
2015

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
165

Terminal Finish
Tin/Lead (Sn63Pb37)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
SRAMs

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
3.3V

Frequency
166MHz

Time@Peak Reflow Temperature-Max (s)
20

Pin Count
165

Operating Supply Voltage
3.3V

Temperature Grade
COMMERCIAL

Max Supply Voltage
3.465V

Min Supply Voltage
3.135V

Memory Size
512kB

Number of Ports
1

Nominal Supply Current
350mA

Memory Type
RAM, SDR, SRAM

Max Supply Current
350mA

Frequency (Max)
166MHz

Access Time
3.5 ns

Output Characteristics
3-STATE

Address Bus Width
17b

Density
4.5 Mb

Standby Current-Max
0.04A

I/O Type
COMMON

Sync/Async
Synchronous

Word Size
36b

Height
1.2mm

Length
15mm

Width
13mm

Thickness
1.2mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas 71V3556SA166BQ.

Datasheets:

integrateddevicetechnology-71v3556sa166bq-datasheets-4795.pdf

integrateddevicetechnology-71v3556sa166bq-datasheets-4701.pdf

71V3556SA166BQ Overview

RAM, SDR, SRAM is its memory type. There is an 512kB memory capacity on the chip. As you can see from the diagram, the chip is planted with 165 terminations. In total, 1 functions are supported by this part. The memory device designed for this application has been designed to be powered by an 3.3V power supply. It is encased in an 165-pin package that contains this ic memory chip. It has 165 pins indicating it has 165 memory locations. It is noted that the operating supply voltage of this memory is 3.3V. Chips such as this one are mounted using Surface Mount mounting, a straightforward method of mounting that is effective. Memory chip's nominal supply current is 350mA. An address can be read and/or written to one memory address using 1 ports on the chip. In addition to this device, there are COMMON-bit memory mapped I/O port addresses on this device. A minimum operating temperature of 0°C must be met by this device. As a general rule, memory ics is recommended that the product be operated at temperatures no higher than 70°Cc, otherwise, damage could be done to it. Generally, this component is considered a type of SRAMs. This memory ics requires a minimum voltage of 3.135V. In order for it to operate properly, its voltage should not exceed 3.465V. In this memory chip, data is processed at a frequency of 166MHz. Depending on the current that you choose, ic memory chip can run from a maximum of 350mA . There is a maximum frequency of 166MHz for this Memory chip.

71V3556SA166BQ Features

165 Pins
Operating Supply Voltage:3.3V
I/O Type: COMMON
Freguency at 166MHz
166MHz terminals

71V3556SA166BQ Applications

There are a lot of Integrated Device Technology (IDT)
71V3556SA166BQ Memory applications.

telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
hard disk drive (HDD)
