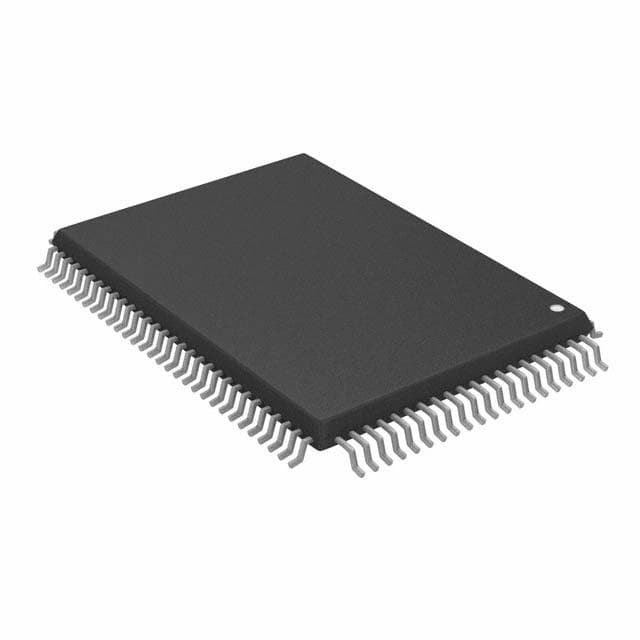

Renesas 71V25761S183PFG

Manufacturer No:

71V25761S183PFG

Manufacturer:

Renesas

Package:

TQFP

Description:

Surface Mount 100 Pin Memory IC 4.5 Mb kb 20mm mm 340mA mA 36b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

71V25761S183PFG information

Renesas 71V25761S183PFG technical specifications, attributes, parameters and parts with similar specifications to Renesas 71V25761S183PFG.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
100

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
100

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
PIPELINED ARCHITECTURE

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Frequency
183MHz

Time@Peak Reflow Temperature-Max (s)
30

Operating Supply Voltage
3.3V

Temperature Grade
COMMERCIAL

Interface
Parallel

Max Supply Voltage
3.465V

Min Supply Voltage
3.135V

Memory Size
512kB

Number of Ports
1

Nominal Supply Current
340mA

Memory Type
RAM, SDR, SRAM

Frequency (Max)
183MHz

Access Time
3.3 ns

Output Characteristics
3-STATE

Address Bus Width
17b

Density
4.5 Mb

Standby Current-Max
0.03A

I/O Type
COMMON

Sync/Async
Synchronous

Word Size
36b

Length
20mm

Width
14mm

Thickness
1.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 71V25761S183PFG.

Datasheets:

integrateddevicetechnology-71v25761s183pfg-datasheets-1246.pdf

71V25761S183PFG Overview

There is a memory type RAM, SDR, SRAM for this type of device. The file is embedded in a TQFP case. This chip has an 512kB size of memory on it, so a lot of data can be stored on it. The chip contains 100 terminations. As many as 1 functions are supported for comprehensive working. An 3.3V supply is required for this ic memory chip to operate properly. A package of 100 pins is used to protect this memory device. The memory device has 100 pins, which means that it has 100 memory locations, which indicates it is an 100-bit device. This memory runs on an 3.3V operating supply voltage. Memory chips configured with Surface Mount mounting achieve high efficiency and simplicity. The nominal supply current of this memory component is 340mA. Although it has all the merits this chip has, it is also equipped with PIPELINED ARCHITECTURE to give a performance boost to the system. Each memory address is accessed by one of 1 ports on this chip. An COMMON-bit memory mapped I/O port address is used to address this device. There must be at least an 0°C operating temperature for this device. The part should not be operated at temperatures above 70°C degrees Celsius as otherwise, the part may be damaged due to the excessive amount of heat. The component is usually referred to as a type of SRAMs. This part should have a minimum supply voltage of 3.135V. A maximum voltage of 3.465V shall be allowed for its operating voltage. As a result of the frequency of this memory chip, data can be processed at a rate of 183MHz. This Memory chip operates at a maximum frequency of 183MHz.

71V25761S183PFG Features

Package / Case: TQFP
100 Pins
Operating Supply Voltage:3.3V
Additional Feature:PIPELINED ARCHITECTURE
I/O Type: COMMON
Freguency at 183MHz
183MHz terminals

71V25761S183PFG Applications

There are a lot of Integrated Device Technology (IDT)
71V25761S183PFG Memory applications.

personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
