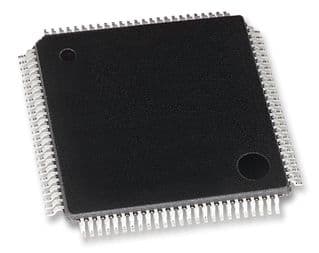

Renesas 71V2556S133PFGI

Manufacturer No:

71V2556S133PFGI

Manufacturer:

Renesas

Package:

TQFP

Description:

Surface Mount 100 Pin Memory IC 4.5 Mb kb 20mm mm 310mA mA 36b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

71V2556S133PFGI information

Renesas 71V2556S133PFGI technical specifications, attributes, parameters and parts with similar specifications to Renesas 71V2556S133PFGI.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
100

Published
2011

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
100

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
PIPELINED ARCHITECTURE

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
FLAT

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Frequency
133MHz

Time@Peak Reflow Temperature-Max (s)
30

Operating Supply Voltage
3.3V

Temperature Grade
INDUSTRIAL

Interface
Parallel

Max Supply Voltage
3.465V

Min Supply Voltage
3.135V

Memory Size
512kB

Number of Ports
1

Nominal Supply Current
310mA

Memory Type
RAM, SDR, SRAM

Frequency (Max)
133MHz

Access Time
4.2 ns

Output Characteristics
3-STATE

Address Bus Width
17b

Density
4.5 Mb

Standby Current-Max
0.045A

I/O Type
COMMON

Sync/Async
Synchronous

Word Size
36b

Length
20mm

Width
14mm

Thickness
1.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 71V2556S133PFGI.

Datasheets:

integrateddevicetechnology-71v2556s133pfgi-datasheets-8182.pdf

71V2556S133PFGI Overview

RAM, SDR, SRAM is its memory type. As you can see, it is embedded in TQFP case. There is an 512kB memory capacity on the chip. As you can see from the diagram, the chip is planted with 100 terminations. In total, 1 functions are supported by this part. The memory device designed for this application has been designed to be powered by an 3.3V power supply. It is encased in an 100-pin package that contains this ic memory chip. It has 100 pins indicating it has 100 memory locations. It is noted that the operating supply voltage of this memory is 3.3V. Chips such as this one are mounted using Surface Mount mounting, a straightforward method of mounting that is effective. Memory chip's nominal supply current is 310mA. While this memory chip features many merits, it also offers PIPELINED ARCHITECTURE for improving system performance. An address can be read and/or written to one memory address using 1 ports on the chip. In addition to this device, there are COMMON-bit memory mapped I/O port addresses on this device. A minimum operating temperature of -40°C must be met by this device. As a general rule, memory ics is recommended that the product be operated at temperatures no higher than 85°Cc, otherwise, damage could be done to it. Generally, this component is considered a type of SRAMs. This memory ics requires a minimum voltage of 3.135V. In order for it to operate properly, its voltage should not exceed 3.465V. In this memory chip, data is processed at a frequency of 133MHz. There is a maximum frequency of 133MHz for this Memory chip.

71V2556S133PFGI Features

Package / Case: TQFP
100 Pins
Operating Supply Voltage:3.3V
Additional Feature:PIPELINED ARCHITECTURE
I/O Type: COMMON
Freguency at 133MHz
133MHz terminals

71V2556S133PFGI Applications

There are a lot of Integrated Device Technology (IDT)
71V2556S133PFGI Memory applications.

telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
hard disk drive (HDD)
