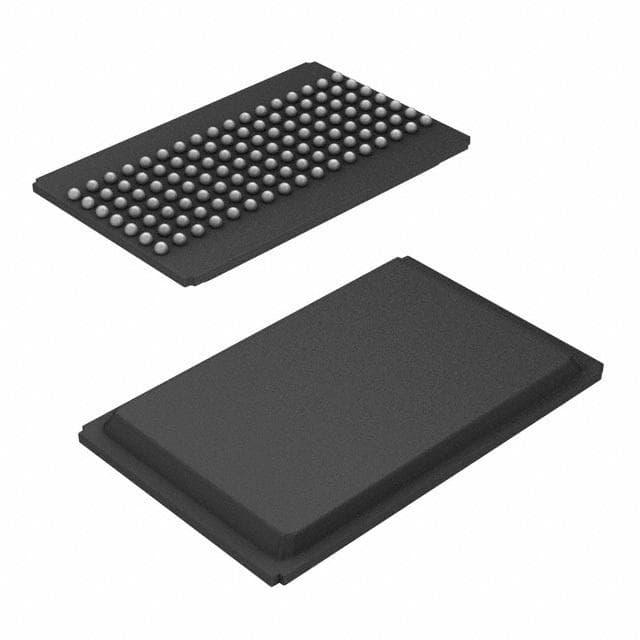

Renesas 71V2546S150BG8

Manufacturer No:

71V2546S150BG8

Manufacturer:

Renesas

Package:

BGA

Description:

Surface Mount 119 Pin Memory IC 4.5 Mb kb 14mm mm 325mA mA 36b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

71V2546S150BG8 information

Renesas 71V2546S150BG8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 71V2546S150BG8.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Package / Case
BGA

Number of Pins
119

Packaging
Tape & Reel

Published
2009

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
119

Terminal Finish
Tin/Lead (Sn63Pb37)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
PIPELINED ARCHITECTURE

Subcategory
SRAMs

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
3.3V

Frequency
150MHz

Time@Peak Reflow Temperature-Max (s)
20

Operating Supply Voltage
3.3V

Temperature Grade
COMMERCIAL

Interface
Parallel

Max Supply Voltage
3.465V

Min Supply Voltage
3.135V

Number of Ports
1

Nominal Supply Current
325mA

Memory Type
RAM, SRAM

Access Time
3.8 ns

Output Characteristics
3-STATE

Address Bus Width
17b

Density
4.5 Mb

Standby Current-Max
0.04A

I/O Type
COMMON

Sync/Async
Synchronous

Word Size
36b

Length
14mm

Height Seated (Max)
2.36mm

Width
22mm

Thickness
2.15mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas 71V2546S150BG8.

Datasheets:

integrateddevicetechnology-71v2546s150bg8-datasheets-5449.pdf

71V2546S150BG8 Overview

There is a memory type RAM, SRAM for this type of device. The case comes in the Tape & Reel style. The file is embedded in a BGA case. The chip contains 119 terminations. As many as 1 functions are supported for comprehensive working. An 3.3V supply is required for this ic memory chip to operate properly. A package of 119 pins is used to protect this memory device. The memory device has 119 pins, which means that it has 119 memory locations, which indicates it is an 119-bit device. This memory runs on an 3.3V operating supply voltage. Memory chips configured with Surface Mount mounting achieve high efficiency and simplicity. The nominal supply current of this memory component is 325mA. Although it has all the merits this chip has, it is also equipped with PIPELINED ARCHITECTURE to give a performance boost to the system. Each memory address is accessed by one of 1 ports on this chip. An COMMON-bit memory mapped I/O port address is used to address this device. There must be at least an 0°C operating temperature for this device. The part should not be operated at temperatures above 70°C degrees Celsius as otherwise, the part may be damaged due to the excessive amount of heat. The component is usually referred to as a type of SRAMs. This part should have a minimum supply voltage of 3.135V. A maximum voltage of 3.465V shall be allowed for its operating voltage. As a result of the frequency of this memory chip, data can be processed at a rate of 150MHz.

71V2546S150BG8 Features

Package / Case: BGA
119 Pins
Operating Supply Voltage:3.3V
Additional Feature:PIPELINED ARCHITECTURE
I/O Type: COMMON
Freguency at 150MHz
150MHz terminals

71V2546S150BG8 Applications

There are a lot of Integrated Device Technology (IDT)
71V2546S150BG8 Memory applications.

personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
