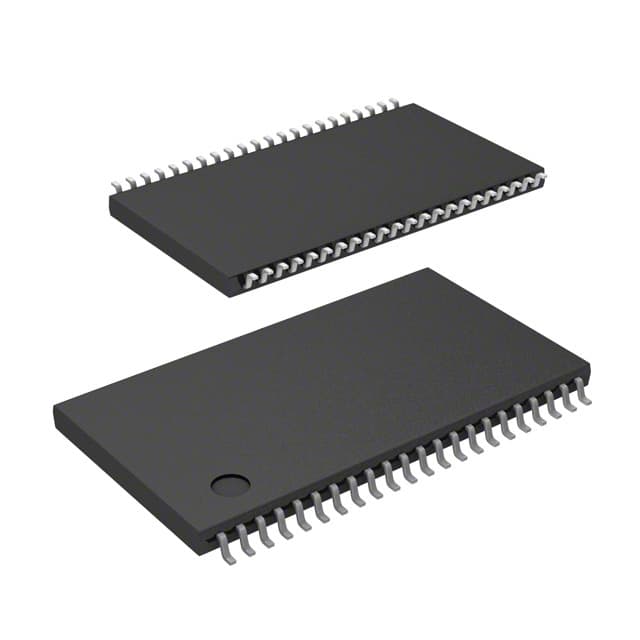

Renesas 71V016SA10PHG8

Manufacturer No:

71V016SA10PHG8

Manufacturer:

Renesas

Package:

TSOP

Description:

Surface Mount 44 Pin Memory IC 1 Mb kb 18.41mm mm 160mA mA 16b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

71V016SA10PHG8 information

Renesas 71V016SA10PHG8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 71V016SA10PHG8.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Surface Mount

Package / Case
TSOP

Number of Pins
44

Memory Types
RAM, SDR, SRAM - Asynchronous

Packaging
Tape & Reel

Published
2011

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
44

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
44

Operating Supply Voltage
3.3V

Interface
Parallel

Max Supply Voltage
3.6V

Min Supply Voltage
3.15V

Memory Size
128kB

Number of Ports
1

Nominal Supply Current
160mA

Access Time
10 ns

Output Characteristics
3-STATE

Address Bus Width
16b

Density
1 Mb

I/O Type
COMMON

Sync/Async
Asynchronous

Word Size
16b

Length
18.41mm

Width
10.16mm

Thickness
1mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 71V016SA10PHG8.

Datasheets:

integrateddevicetechnology-71v016sa10phg8-datasheets-9145.pdf

integrateddevicetechnology-71v016sa10phg8-datasheets-6414.pdf

71V016SA10PHG8 Overview

The case comes in the Tape & Reel style. The file is embedded in a TSOP case. This chip has an 128kB size of memory on it, so a lot of data can be stored on it. The chip contains 44 terminations. As many as 1 functions are supported for comprehensive working. An 3.3V supply is required for this ic memory chip to operate properly. A package of 44 pins is used to protect this memory device. The memory device has 44 pins, which means that it has 44 memory locations, which indicates it is an 44-bit device. This memory runs on an 3.3V operating supply voltage. Memory chips configured with Surface Mount mounting achieve high efficiency and simplicity. The nominal supply current of this memory component is 160mA. Each memory address is accessed by one of 1 ports on this chip. An COMMON-bit memory mapped I/O port address is used to address this device. There must be at least an 0°C operating temperature for this device. The part should not be operated at temperatures above 70°C degrees Celsius as otherwise, the part may be damaged due to the excessive amount of heat. This part should have a minimum supply voltage of 3.15V. A maximum voltage of 3.6V shall be allowed for its operating voltage.

71V016SA10PHG8 Features

Package / Case: TSOP
44 Pins
Operating Supply Voltage:3.3V
I/O Type: COMMON

71V016SA10PHG8 Applications

There are a lot of Integrated Device Technology (IDT)
71V016SA10PHG8 Memory applications.

personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
