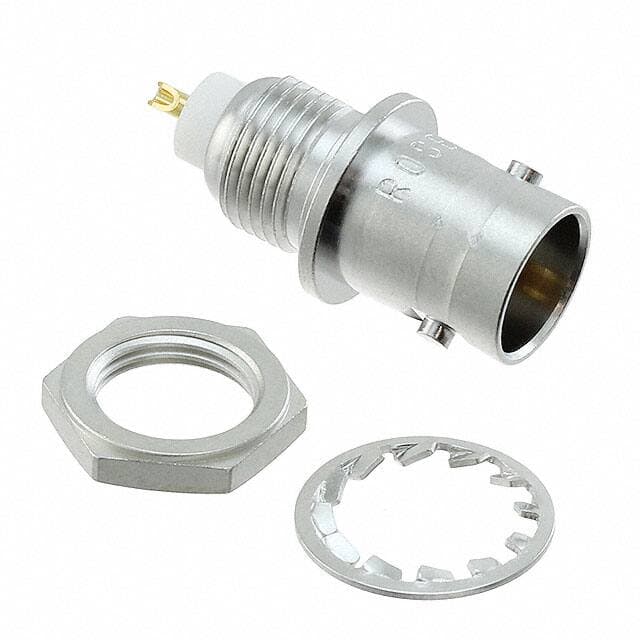

Rosenberger 71K504-200N5
Manufacturer No:
71K504-200N5
Manufacturer:
Package:
Description:
Jack, Female Socket Bayonet Lock 75Ohm Bulk BNC Solder Cup 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
71K504-200N5 information
Rosenberger 71K504-200N5 technical specifications, attributes, parameters and parts with similar specifications to Rosenberger 71K504-200N5.
- Type
- Parameter
- Factory Lead Time
- 13 Weeks
- Mounting Type
- Panel Mount
- Mounting Feature
- Bulkhead - Rear Side Nut
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Body Material
- Brass
- Center Contact Plating
- Gold
- Center Contact Material
- Beryllium Copper
- Operating Temperature
- -65°C~165°C
- Packaging
- Bulk
- Published
- 2013
- Feature
- Extended Insulation
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- ECCN Code
- EAR99
- Connector Type
- Jack, Female Socket
- Resistance
- 71.504kOhm
- Gender
- Female
- Voltage - Rated
- 400V
- Fastening Type
- Bayonet Lock
- Contact Finish - Mating
- NOT SPECIFIED
- Total Number of Contacts
- 1
- Reliability
- COMMERCIAL
- Housing Color
- Silver
- Body Depth
- 0.909 inch
- Impedance
- 75Ohm
- Connector Style
- BNC
- Number of Ports
- 1
- Frequency (Max)
- 4GHz
- Mating Cycles
- 500
- Contact Termination
- Solder Cup
- Includes
- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Operating Frequency-Max
- 4GHz
- Body Finish
- White Bronze
- Shield Termination
- Solder
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Rosenberger 71K504-200N5.
Datasheets:
71K504-200N5 Overview
It is recommended to keep the device resistance within the range of 71.504kOhm.The connector type Jack, Female Socket refers to the connector type.The device's mounting type is Panel Mount.In order to package the product, a Bulk case is used.It features 1 ports for managing a variety of tasks.Its Extended Insulation feature renders it more powerful in many ways.The device runs in -65°C~165°C Operating Temperature.
71K504-200N5 Features
71K504-200N5 Applications
There are a lot of Rosenberger
71K504-200N5 Coaxial Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
