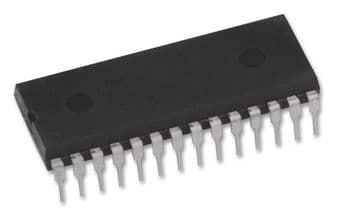

Renesas 7164S20TPG

Manufacturer No:

7164S20TPG

Manufacturer:

Renesas

Package:

PDIP

Description:

5V V Through Hole 28 Pin Memory IC 64 kb kb 34.3mm mm 100mA mA 8b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

7164S20TPG information

Renesas 7164S20TPG technical specifications, attributes, parameters and parts with similar specifications to Renesas 7164S20TPG.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Through Hole

Package / Case
PDIP

Number of Pins
28

Memory Types
RAM, SDR, SRAM - Asynchronous

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
2.54mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
28

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Temperature Grade
COMMERCIAL

Interface
Parallel

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Memory Size
8kB

Number of Ports
1

Nominal Supply Current
100mA

Access Time
20 ns

Organization
8KX8

Output Characteristics
3-STATE

Address Bus Width
13b

Density
64 kb

I/O Type
COMMON

Sync/Async
Asynchronous

Word Size
8b

Length
34.3mm

Height Seated (Max)
4.572mm

Width
7.62mm

Thickness
3.3mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 7164S20TPG.

Datasheets:

integrateddevicetechnology-7164s20tpg-datasheets-5162.pdf

7164S20TPG Overview

The case is embedded in PDIP. Memory size on the chip is 8kB. On the chip, there are 28 terminations. The comprehensive working procedure is supported by 1 functions in this part. A voltage of 5V is required for the operation of this memory device. An 28-pin package is used to package this memory device. A memory device like this has 28 pins, indicating that there are 28 memory locations on the device. There is a note stating that this memory chip operates at 5V. It uses Through Hole mounting, which is an efficient, straightforward mounting method. As far as its nominal supply current is concerned, this memory component carries a rating of 100mA. In this chip, there are 1 ports providing read and/or write access to one memory address. This memory chip requires only 5V of power. A memory mapped I/O port address of COMMON bits is used in this device. A minimum operating temperature of 0°C is required for this device. It should not be operated above 70°C°C. This part should have a minimum supply voltage of at least 4.5V volts in order to function correctly. This part requires a minimum voltage of 5.5V.

7164S20TPG Features

Package / Case: PDIP
28 Pins
Operating Supply Voltage:5V
I/O Type: COMMON

7164S20TPG Applications

There are a lot of Integrated Device Technology (IDT)
7164S20TPG Memory applications.

eSRAM
mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
