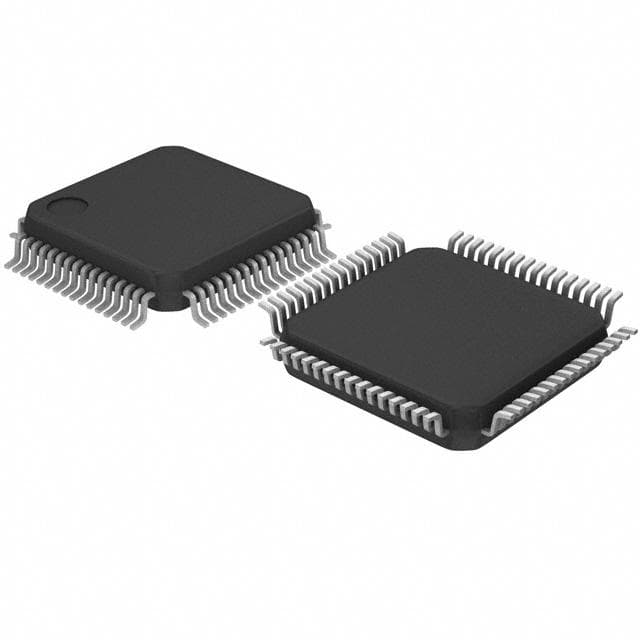

Renesas 71421SA25PF

Manufacturer No:

71421SA25PF

Manufacturer:

Renesas

Package:

TQFP

Description:

5V V Surface Mount 64 Pin Memory IC 16 kb kb 14mm mm 220mA mA 8b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

71421SA25PF information

Renesas 71421SA25PF technical specifications, attributes, parameters and parts with similar specifications to Renesas 71421SA25PF.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
64

Weight
360.605934mg

Published
2008

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
64

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
INTERRUPT FLAG; AUTOMATIC POWER-DOWN

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.8mm

Pin Count
64

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
COMMERCIAL

Interface
Parallel

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Memory Size
2kB

Number of Ports
2

Nominal Supply Current
220mA

Memory Type
RAM, SDR, SRAM

Max Supply Current
110mA

Access Time
25 ns

Output Characteristics
3-STATE

Address Bus Width
22b

Density
16 kb

Standby Current-Max
0.015A

I/O Type
COMMON

Sync/Async
Asynchronous

Word Size
8b

Height
1.4mm

Length
14mm

Width
14mm

Download datasheets and manufacturer documentation for Renesas 71421SA25PF.

Datasheets:

integrateddevicetechnology-71421sa25pf-datasheets-1745.pdf

integrateddevicetechnology-71421sa25pf-datasheets-0538.pdf

71421SA25PF Overview

As far as its memory type goes, it falls into the RAM, SDR, SRAM category. TQFP case encloses it. There is 2kB of memory on the chip. There are 64 terminations on the chip. There are 1 functions supported by this part as part of the comprehensive working process. The memory device is designed to be supplied with an 5V volt power supply in order to operate properly. In this ic memory chip, there is an 64-pin package that encloses the device. It is worth noting that this memory device has 64 pins, which indicates it has 64 memory locations. This memory chip has an operating supply voltage of 5V. As a result of the Surface Mount mounting configuration, this chip is designed to be straightforward, high-efficiency, and easy to install. As far as the nominal supply current of this memory component is concerned, it is rated at 220mA. Despite all its benefits, this memory chip also offers INTERRUPT FLAG; AUTOMATIC POWER-DOWN for improved system performance. Using 2 ports, a single memory address can be read and/or written. As for the power supply, this memory chip only needs 5V . A memory map of COMMON bits has been added to the I/O port addresses of this device. Memory ics must operate at a temperature of at least 0°C. Temperatures over 70°C°C are not recommended. There is a common misconception that this component is a type of SRAMs. If this part is to be used, the minimum supply voltage should not be less than 4.5V volts. The operating voltage of the memory ics shall not exceed 5.5V. Maximum current is 110mA .

71421SA25PF Features

Package / Case: TQFP
64 Pins
Operating Supply Voltage:5V
Additional Feature:INTERRUPT FLAG; AUTOMATIC POWER-DOWN
I/O Type: COMMON

71421SA25PF Applications

There are a lot of Integrated Device Technology (IDT)
71421SA25PF Memory applications.

multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
