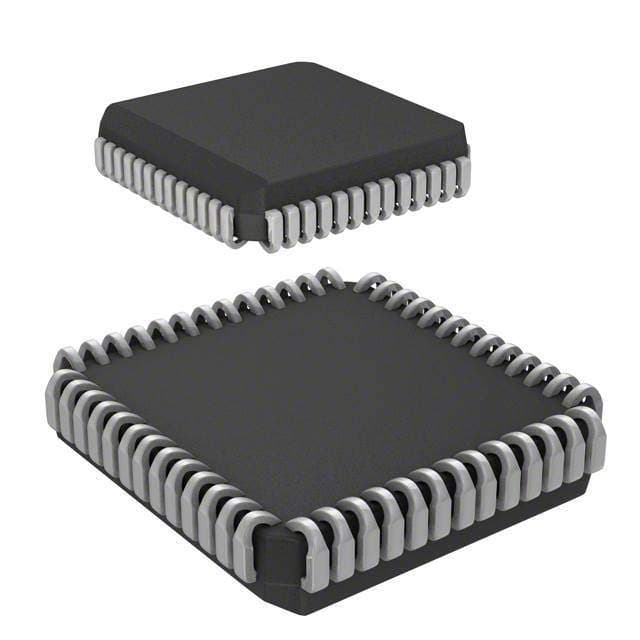

Renesas 71421LA35J

Manufacturer No:

71421LA35J

Manufacturer:

Renesas

Package:

PLCC

Description:

5V V Surface Mount 52 Pin Memory IC 16 kb kb 19mm mm 120mA mA 8b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

71421LA35J information

Renesas 71421LA35J technical specifications, attributes, parameters and parts with similar specifications to Renesas 71421LA35J.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Package / Case
PLCC

Number of Pins
52

Published
2008

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
52

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
AUTOMATIC POWER DOWN

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
5V

Pin Count
52

Operating Supply Voltage
5V

Temperature Grade
COMMERCIAL

Interface
Parallel

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Memory Size
2kB

Number of Ports
2

Nominal Supply Current
120mA

Memory Type
RAM, SDR, SRAM

Access Time
35 ns

Output Characteristics
3-STATE

Address Bus Width
22b

Density
16 kb

Standby Current-Max
0.0015A

I/O Type
COMMON

Sync/Async
Asynchronous

Word Size
8b

Standby Voltage-Min
2V

Length
19mm

Width
19mm

Thickness
3.63mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas 71421LA35J.

Datasheets:

integrateddevicetechnology-71421la35j-datasheets-9957.pdf

71421LA35J Overview
