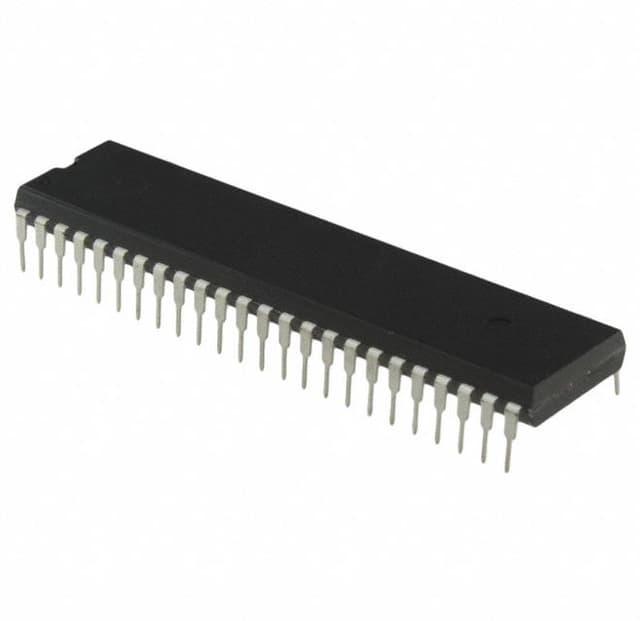

Renesas 7134SA20P

Manufacturer No:

7134SA20P

Manufacturer:

Renesas

Package:

PDIP

Description:

5V V Through Hole 48 Pin Memory IC 32 kb kb 61.7mm mm 280mA mA 8b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

7134SA20P information

Renesas 7134SA20P technical specifications, attributes, parameters and parts with similar specifications to Renesas 7134SA20P.

Type
Parameter

Mount
Through Hole

Package / Case
PDIP

Number of Pins
48

Packaging
Bulk

Published
2013

JESD-609 Code
e0

Pbfree Code
no

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
48

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
AUTOMATIC POWER-DOWN

Subcategory
SRAMs

Technology
CMOS

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
245

Number of Functions
1

Supply Voltage
5V

Pin Count
48

Operating Supply Voltage
5V

Power Supplies
5V

Interface
Parallel

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Memory Size
4kB

Number of Ports
2

Nominal Supply Current
280mA

Memory Type
RAM, SDR, SRAM

Access Time
20 ns

Organization
4KX8

Output Characteristics
3-STATE

Address Bus Width
24b

Density
32 kb

Standby Current-Max
0.015A

I/O Type
COMMON

Sync/Async
Asynchronous

Word Size
8b

Length
61.7mm

Height Seated (Max)
5.08mm

Width
15.24mm

Thickness
3.8mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas 7134SA20P.

Datasheets:

integrateddevicetechnology-7134sa20p-datasheets-7196.pdf

7134SA20P Overview

RAM, SDR, SRAM is its memory type. It is available in a case with a Bulk shape. As you can see, it is embedded in PDIP case. There is an 4kB memory capacity on the chip. As you can see from the diagram, the chip is planted with 48 terminations. In total, 1 functions are supported by this part. The memory device designed for this application has been designed to be powered by an 5V power supply. It is encased in an 48-pin package that contains this ic memory chip. It has 48 pins indicating it has 48 memory locations. It is noted that the operating supply voltage of this memory is 5V. Chips such as this one are mounted using Through Hole mounting, a straightforward method of mounting that is effective. Memory chip's nominal supply current is 280mA. While this memory chip features many merits, it also offers AUTOMATIC POWER-DOWN for improving system performance. An address can be read and/or written to one memory address using 2 ports on the chip. This memory chip requires a mere 5V of power. In addition to this device, there are COMMON-bit memory mapped I/O port addresses on this device. A minimum operating temperature of 0°C must be met by this device. As a general rule, memory ics is recommended that the product be operated at temperatures no higher than 70°Cc, otherwise, damage could be done to it. Generally, this component is considered a type of SRAMs. This memory ics requires a minimum voltage of 4.5V. In order for it to operate properly, its voltage should not exceed 5.5V.

7134SA20P Features

Package / Case: PDIP
48 Pins
Operating Supply Voltage:5V
Additional Feature:AUTOMATIC POWER-DOWN
I/O Type: COMMON

7134SA20P Applications

There are a lot of Integrated Device Technology (IDT)
7134SA20P Memory applications.

telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
hard disk drive (HDD)
