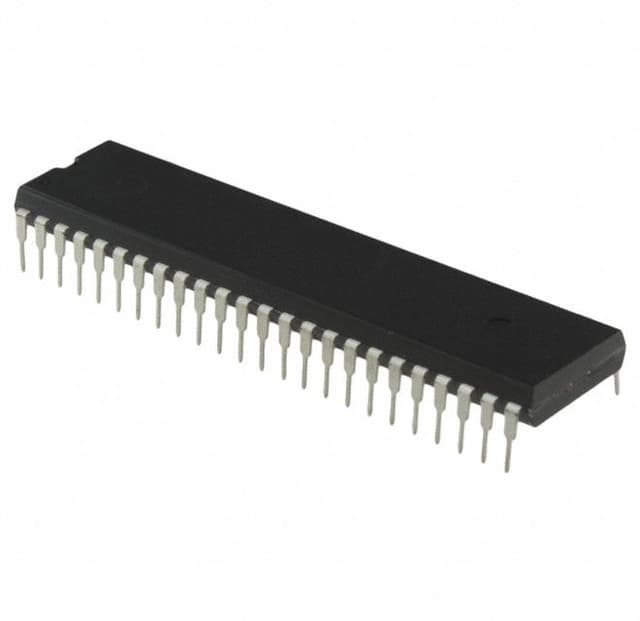

Renesas 7134LA20P

Manufacturer No:

7134LA20P

Manufacturer:

Renesas

Package:

PDIP

Description:

5V V Through Hole 48 Pin Memory IC 32 kb kb 61.7mm mm 240mA mA 8b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

7134LA20P information

Renesas 7134LA20P technical specifications, attributes, parameters and parts with similar specifications to Renesas 7134LA20P.

Type
Parameter

Mount
Through Hole

Package / Case
PDIP

Number of Pins
48

Packaging
Bulk

Published
2013

JESD-609 Code
e0

Pbfree Code
no

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
48

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
AUTOMATIC POWER-DOWN; BATTERY BACKUP

Subcategory
SRAMs

Technology
CMOS

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
245

Number of Functions
1

Supply Voltage
5V

Pin Count
48

Operating Supply Voltage
5V

Power Supplies
5V

Interface
Parallel

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Memory Size
4kB

Number of Ports
2

Nominal Supply Current
240mA

Memory Type
RAM, SDR, SRAM

Access Time
20 ns

Organization
4KX8

Output Characteristics
3-STATE

Address Bus Width
24b

Density
32 kb

Standby Current-Max
0.0015A

I/O Type
COMMON

Sync/Async
Asynchronous

Word Size
8b

Standby Voltage-Min
2V

Length
61.7mm

Height Seated (Max)
5.08mm

Width
15.24mm

Thickness
3.8mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 7134LA20P.

Datasheets:

integrateddevicetechnology-7134la20p-datasheets-4272.pdf

integrateddevicetechnology-7134la20p-datasheets-4273.pdf

integrateddevicetechnology-7134la20p-datasheets-8973.pdf

7134LA20P Overview

In terms of its memory type, it can be classified as RAM, SDR, SRAM. The case comes in Bulk size. The case is embedded in PDIP. Memory size on the chip is 4kB. On the chip, there are 48 terminations. The comprehensive working procedure is supported by 1 functions in this part. A voltage of 5V is required for the operation of this memory device. An 48-pin package is used to package this memory device. A memory device like this has 48 pins, indicating that there are 48 memory locations on the device. There is a note stating that this memory chip operates at 5V. It uses Through Hole mounting, which is an efficient, straightforward mounting method. As far as its nominal supply current is concerned, this memory component carries a rating of 240mA. It also features AUTOMATIC POWER-DOWN; BATTERY BACKUP to boost system performance despite all its merits. In this chip, there are 2 ports providing read and/or write access to one memory address. This memory chip requires only 5V of power. A memory mapped I/O port address of COMMON bits is used in this device. A minimum operating temperature of 0°C is required for this device. It should not be operated above 70°C°C. The SRAMs component is usually regarded as a type of this component. This part should have a minimum supply voltage of at least 4.5V volts in order to function correctly. This part requires a minimum voltage of 5.5V.

7134LA20P Features

Package / Case: PDIP
48 Pins
Operating Supply Voltage:5V
Additional Feature:AUTOMATIC POWER-DOWN; BATTERY BACKUP
I/O Type: COMMON

7134LA20P Applications

There are a lot of Integrated Device Technology (IDT)
7134LA20P Memory applications.

eSRAM
mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
