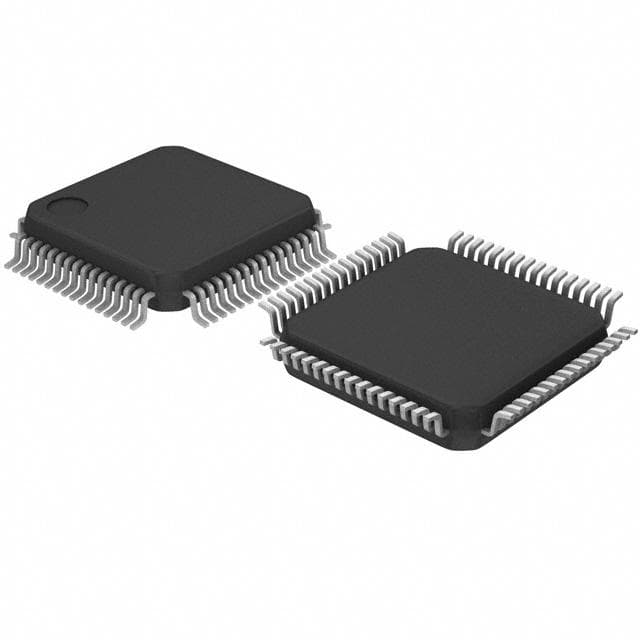

Renesas 71321LA55PF

Manufacturer No:

71321LA55PF

Manufacturer:

Renesas

Package:

TQFP

Description:

5V V Surface Mount 64 Pin Memory IC 16 kb kb 14mm mm 110mA mA 8b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

71321LA55PF information

Renesas 71321LA55PF technical specifications, attributes, parameters and parts with similar specifications to Renesas 71321LA55PF.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
64

Published
2008

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
64

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
INTERRUPT FLAG; AUTOMATIC POWER-DOWN; BATTERY BACKUP

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
20

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
COMMERCIAL

Interface
Parallel

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Memory Size
2kB

Number of Ports
2

Nominal Supply Current
110mA

Memory Type
RAM, SDR, SRAM

Access Time
55 ns

Output Characteristics
3-STATE

Address Bus Width
22b

Density
16 kb

Standby Current-Max
0.0015A

I/O Type
COMMON

Sync/Async
Asynchronous

Word Size
8b

Standby Voltage-Min
2V

Length
14mm

Height Seated (Max)
1.6mm

Width
14mm

Thickness
1.4mm

Download datasheets and manufacturer documentation for Renesas 71321LA55PF.

Datasheets:

integrateddevicetechnology-71321la55pf-datasheets-5151.pdf

71321LA55PF Overview

A RAM, SDR, SRAM-type memory can be classified as the memory type of this device. Embedded in the TQFP case, memory ics is a single file. On the chip, there is an 2kB memory, which is the size of the chip's memory. A total of 64 terminations have been planted on the chip. The comprehensive working procedure of this part involves 1 functions. In order to power this memory device, 5V will be necessary. A 64-pin package containing this memory device is used to house this device. The memory device in question has 64 pins, thus indicating that it has 64 memory locations that can be accessed. There is a note indicating that this memory chip operates at an 5V volt supply voltage. The memory chip utilizes a straightforward, high-efficiency mounting method, Surface Mount mounting. There is a nominal supply current rating of 110mA for this memory component. This chip features all the merits of a conventional chip, but it also features INTERRUPT FLAG; AUTOMATIC POWER-DOWN; BATTERY BACKUP to improve system performance. 2 ports allow read/write access to one memory address in this chip. As for power supplies, this memory chip requires just 5V . As part of the design, the I/O port addresses are mapped into the memory using an COMMON-bit number. There must not be a minimum operating temperature of less than 0°C for this device. A temperature of no more than 70°C centigrade is recommended for the component to be operated, otherwise, damage might be inflicted on the component. Usually, this memory ics falls under the SRAMs component category. Ideally, this part should be supplied with a voltage of at least 4.5V. An operating voltage of no more than 5.5V is required.

71321LA55PF Features

Package / Case: TQFP
64 Pins
Operating Supply Voltage:5V
Additional Feature:INTERRUPT FLAG; AUTOMATIC POWER-DOWN; BATTERY BACKUP
I/O Type: COMMON

71321LA55PF Applications

There are a lot of Integrated Device Technology (IDT)
71321LA55PF Memory applications.

supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
