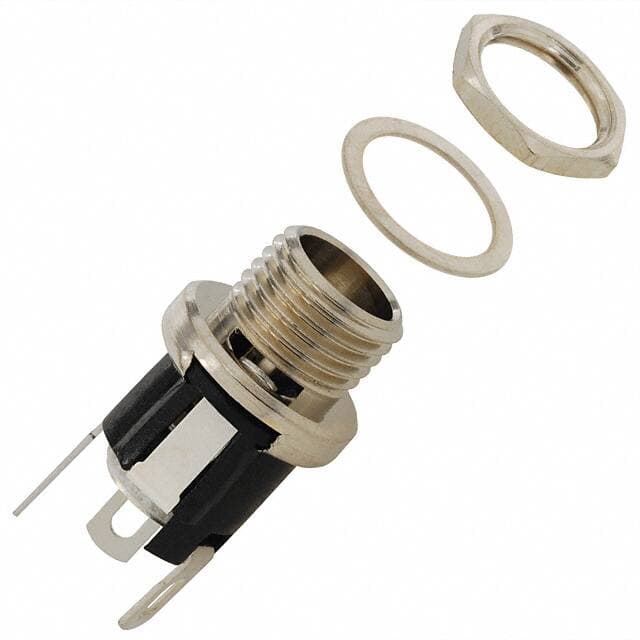

Switchcraft Inc. 712A

Manufacturer No:

712A

Manufacturer:

Switchcraft Inc.

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

712A information

Switchcraft Inc. 712A technical specifications, attributes, parameters and parts with similar specifications to Switchcraft Inc. 712A.

Type
Parameter

Factory Lead Time
8 Weeks

Contact Material
Copper Alloy

Contact Plating
Silver

Mount
Bulkhead, Front Side Nut, Panel, Through Hole

Mounting Type
Panel Mount

Mounting Feature
Bulkhead - Front Side Nut

Housing Material
Thermoplastic

Weight
3.200009g

Body Material
Copper Alloy

Packaging
Bulk

JESD-609 Code
e4

Feature
Mounting Hardware, Thread Lock

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

Termination
Solder Eyelet(s)

ECCN Code
EAR99

Connector Type
Jack

Gender
Male

Voltage - Rated DC
12V

Contact Finish - Mating
NOT SPECIFIED

MIL Conformance
NO

DIN Conformance
NO

Option
GENERAL PURPOSE

Orientation
Straight

Shielding
Unshielded

Current Rating
5A

Voltage - Rated AC
12V

Number of Contacts
2

Contact Gender
Female

Insulation Resistance
1GOhm

Max Current Rating
5A

Number of Ports
1

Max Voltage Rating (DC)
12V

Number of Positions/Contacts
2 Conductors, 3 Contacts

Includes
3 pcs - 1 Connector, 1 Nut, 1 Washer

Internal Switch(s)
Single Switch, Normally Closed

Body Color
Black

Industry Recognized Mating Diameter
2.50mm ID (0.098), 5.50mm OD (0.217)

Actual Diameter
0.098 (2.50mm ID), 0.217 (5.50mm OD)

Mating Length/Depth
0.374 9.50mm

Rated Current (Power)
5A

Diameter
11mm

Length
23.3mm

Width
20.7264mm

REACH SVHC
No SVHC

Download datasheets and manufacturer documentation for Switchcraft Inc. 712A.

Switchcraft Barrel - Power Connectors 712A are a reliable and durable power connector solution for a variety of applications. These connectors feature a 2.5x5.5mm barrel size and are designed for soldering. They are made from high-quality materials and are designed to provide a secure connection.

Features

2.5x5.5mm barrel size
Designed for soldering
High-quality materials
Secure connection

Application

Switchcraft Barrel - Power Connectors 712A are ideal for a variety of applications, including consumer electronics, automotive, and industrial applications. They are suitable for use in a variety of power supply and power distribution systems.
