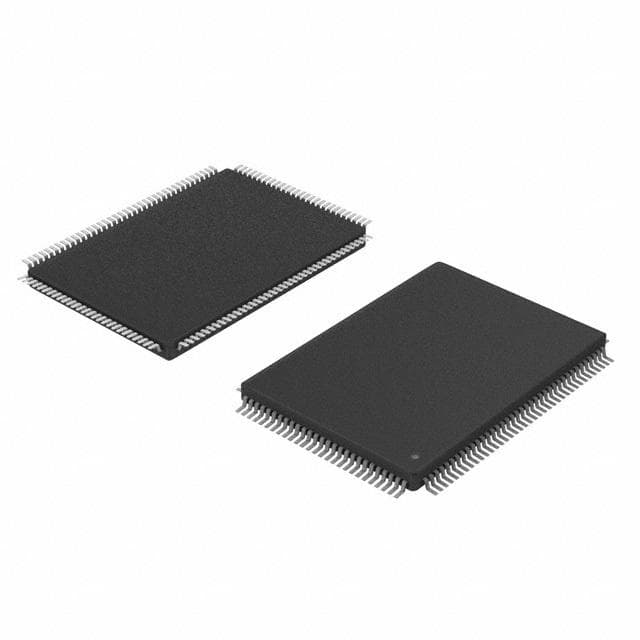

Renesas 70V9289L12PRF8

Manufacturer No:

70V9289L12PRF8

Manufacturer:

Renesas

Package:

TQFP

Description:

Surface Mount 128 Pin Memory IC 1 Mb kb 20mm mm 200mA mA 16b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

70V9289L12PRF8 information

Renesas 70V9289L12PRF8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 70V9289L12PRF8.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
128

Published
2009

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
128

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
-40°C

Additional Feature
FLOW-THROUGH OR PIPELINED ARCHITECTURE

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Frequency
33.3MHz

Pin Count
128

Temperature Grade
COMMERCIAL

Interface
Parallel

Max Supply Voltage
3.6V

Min Supply Voltage
3V

Memory Size
128kB

Number of Ports
2

Nominal Supply Current
200mA

Memory Type
RAM, SDR, SRAM

Frequency (Max)
83MHz

Access Time
12 ns

Organization
64KX16

Output Characteristics
3-STATE

Address Bus Width
32b

Density
1 Mb

I/O Type
COMMON

Sync/Async
Synchronous

Word Size
16b

Standby Voltage-Min
3V

Length
20mm

Height Seated (Max)
1.6mm

Width
14mm

Thickness
1.4mm

Radiation Hardening
No

Download datasheets and manufacturer documentation for Renesas 70V9289L12PRF8.

Datasheets:

integrateddevicetechnology-70v9289l12prf8-datasheets-2435.pdf

integrateddevicetechnology-70v9289l12prf8-datasheets-8258.pdf

70V9289L12PRF8 Overview

In terms of its memory type, it can be classified as RAM, SDR, SRAM. The case is embedded in TQFP. Memory size on the chip is 128kB. On the chip, there are 128 terminations. The comprehensive working procedure is supported by 1 functions in this part. A voltage of 3.3V is required for the operation of this memory device. An 128-pin package is used to package this memory device. A memory device like this has 128 pins, indicating that there are 128 memory locations on the device. There is a note stating that this memory chip operates at 3.3V. It uses Surface Mount mounting, which is an efficient, straightforward mounting method. As far as its nominal supply current is concerned, this memory component carries a rating of 200mA. It also features FLOW-THROUGH OR PIPELINED ARCHITECTURE to boost system performance despite all its merits. In this chip, there are 2 ports providing read and/or write access to one memory address. A memory mapped I/O port address of COMMON bits is used in this device. A minimum operating temperature of -40°C is required for this device. It should not be operated above 70°C°C. The SRAMs component is usually regarded as a type of this component. This part should have a minimum supply voltage of at least 3V volts in order to function correctly. This part requires a minimum voltage of 3.6V. The frequency of data processing on this memory chip is 33.3MHz. There is a maximum frequency of 83MHz on this memory chip.

70V9289L12PRF8 Features

Package / Case: TQFP
128 Pins
Operating Supply Voltage:3.3V
Additional Feature:FLOW-THROUGH OR PIPELINED ARCHITECTURE
I/O Type: COMMON
Freguency at 33.3MHz
33.3MHz terminals

70V9289L12PRF8 Applications

There are a lot of Integrated Device Technology (IDT)
70V9289L12PRF8 Memory applications.

eSRAM
mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
