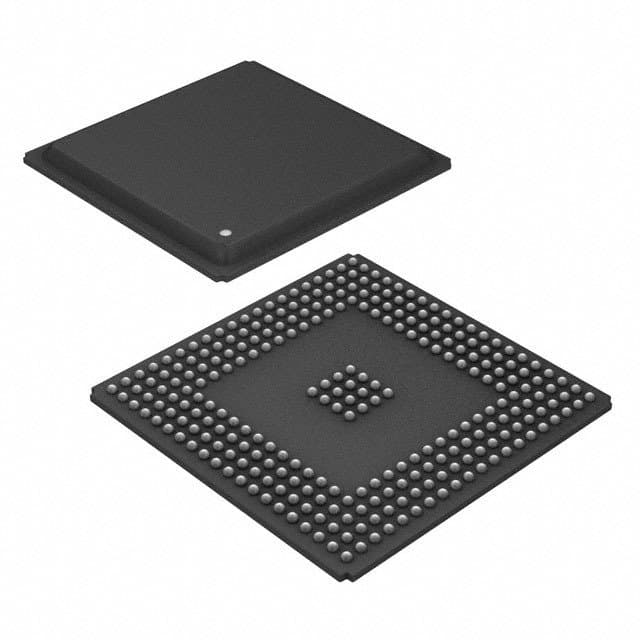

Renesas 70V5388S166BGI

Manufacturer No:

70V5388S166BGI

Manufacturer:

Renesas

Package:

BGA

Description:

Surface Mount 272 Pin Memory IC 1.1 Mb kb 27mm mm 400mA mA 18b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

70V5388S166BGI information

Renesas 70V5388S166BGI technical specifications, attributes, parameters and parts with similar specifications to Renesas 70V5388S166BGI.

Type
Parameter

Mount
Surface Mount

Package / Case
BGA

Number of Pins
272

Published
2008

JESD-609 Code
e0

Pbfree Code
no

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
272

ECCN Code
3A991.B.2.A

Terminal Finish
Tin/Lead (Sn63Pb37)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
PIPELINED ARCHITECTURE

Subcategory
SRAMs

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
3.3V

Frequency
166MHz

Time@Peak Reflow Temperature-Max (s)
20

Pin Count
272

Temperature Grade
INDUSTRIAL

Interface
Parallel

Max Supply Voltage
3.45V

Min Supply Voltage
3.15V

Memory Size
128kB

Number of Ports
4

Nominal Supply Current
400mA

Memory Type
RAM, SDR, SRAM

Access Time
6 ns

Output Characteristics
3-STATE

Address Bus Width
16b

Density
1.1 Mb

Standby Current-Max
0.015A

I/O Type
COMMON

Sync/Async
Synchronous

Word Size
18b

Length
27mm

Width
27mm

Thickness
2mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas 70V5388S166BGI.

Datasheets:

integrateddevicetechnology-70v5388s166bgi-datasheets-9860.pdf

70V5388S166BGI Overview

As far as memory types are concerned, RAM, SDR, SRAM is considered to be its memory type. In the case of BGA, it is embedded within the case. A memory chip with a capacity of 128kB is used on this device. On the chip, there are 272 terminations that are planted. The part supports at least 1 functions to ensure a comprehensive working process. In order to function properly, this ic memory chip should be powered by a voltage of 3.3V. The memory device has an 272-pin package, which encloses it in a small package. I have noticed that the memory device has 272 pins, which indicates that it has 272 locations in the memory. According to the datasheet, this memory chip operates at an operating voltage of 3.3V. In this chip, the Surface Mount mounting method is used, a straightforward, high-efficiency mounting method. In terms of its nominal supply current, this memory component has a rating of 400mA. The memory chip also offers PIPELINED ARCHITECTURE to level up system performance despite its merits. The memory chip has 4 ports for granting read/write access to one memory address. There are I/O ports on this memory ics that have COMMON-bit memory mapping. Temperatures below -40°C should not be used with this memory ics. It is recommended that operation of the part be restricted to temperatures not exceeding 85°C, otherwise damage to the part may occur as a result of overheating. In most cases, this memory ics is regarded as being a type of SRAMs. It is recommended that this part be supplied with at least 3.15V volts. The operating voltage shall not exceed 3.45V. A ic memory chip like this one processes data at a frequency of 166MHz bits per second.

70V5388S166BGI Features

Package / Case: BGA
272 Pins
Operating Supply Voltage:3.3V
Additional Feature:PIPELINED ARCHITECTURE
I/O Type: COMMON
Freguency at 166MHz
166MHz terminals

70V5388S166BGI Applications

There are a lot of Integrated Device Technology (IDT)
70V5388S166BGI Memory applications.

servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
