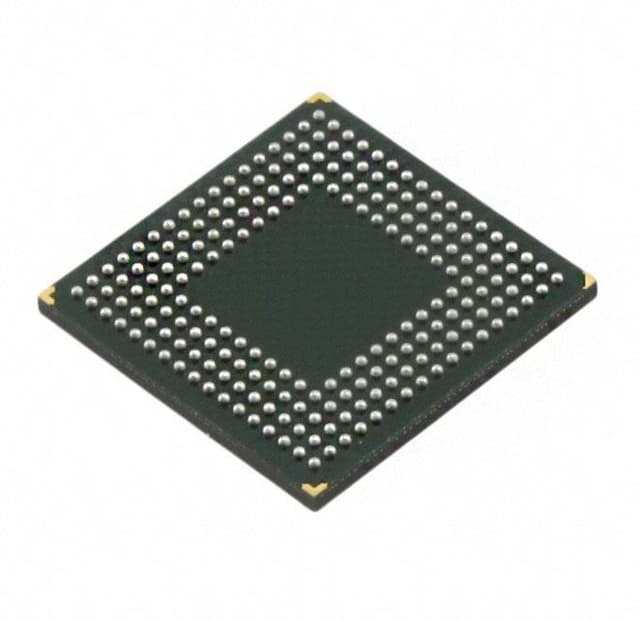

Renesas 70V3599S166BFG8

Manufacturer No:

70V3599S166BFG8

Manufacturer:

Renesas

Package:

Description:

208 Pin Memory IC 4.5 Mb kb 15mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

70V3599S166BFG8 information

Renesas 70V3599S166BFG8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 70V3599S166BFG8.

Type
Parameter

Factory Lead Time
7 Weeks

Surface Mount
YES

Number of Pins
208

Published
2009

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
208

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
PIPELINED OR FLOW-THROUGH ARCHITECTURE

Subcategory
SRAMs

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.8mm

Frequency
166MHz

Pin Count
208

Operating Supply Voltage
3.3V

Temperature Grade
COMMERCIAL

Max Supply Voltage
3.45V

Min Supply Voltage
3.15V

Memory Size
512kB

Number of Ports
2

Memory Type
RAM, SDR, SRAM

Supply Current-Max
0.5mA

Access Time
20 ns

Output Characteristics
3-STATE

Address Bus Width
34b

Density
4.5 Mb

Standby Current-Max
0.03A

I/O Type
COMMON

Length
15mm

Width
15mm

Thickness
1.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 70V3599S166BFG8.

Datasheets:

integrateddevicetechnology-70v3599s166bfg8-datasheets-6218.pdf

70V3599S166BFG8 Overview

RAM, SDR, SRAM is its memory type. There is an 512kB memory capacity on the chip. As you can see from the diagram, the chip is planted with 208 terminations. In total, 1 functions are supported by this part. The memory device designed for this application has been designed to be powered by an 3.3V power supply. It is encased in an 208-pin package that contains this ic memory chip. It has 208 pins indicating it has 208 memory locations. It is noted that the operating supply voltage of this memory is 3.3V. While this memory chip features many merits, it also offers PIPELINED OR FLOW-THROUGH ARCHITECTURE for improving system performance. An address can be read and/or written to one memory address using 2 ports on the chip. In addition to this device, there are COMMON-bit memory mapped I/O port addresses on this device. A minimum operating temperature of 0°C must be met by this device. As a general rule, memory ics is recommended that the product be operated at temperatures no higher than 70°Cc, otherwise, damage could be done to it. This memory ics is capable of operating with an input current of 0.5mA at max. Generally, this component is considered a type of SRAMs. This memory ics requires a minimum voltage of 3.15V. In order for it to operate properly, its voltage should not exceed 3.45V. In this memory chip, data is processed at a frequency of 166MHz.

70V3599S166BFG8 Features

208 Pins
Operating Supply Voltage:3.3V
Additional Feature:PIPELINED OR FLOW-THROUGH ARCHITECTURE
I/O Type: COMMON
Freguency at 166MHz
166MHz terminals

70V3599S166BFG8 Applications

There are a lot of Integrated Device Technology (IDT)
70V3599S166BFG8 Memory applications.

telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
hard disk drive (HDD)
