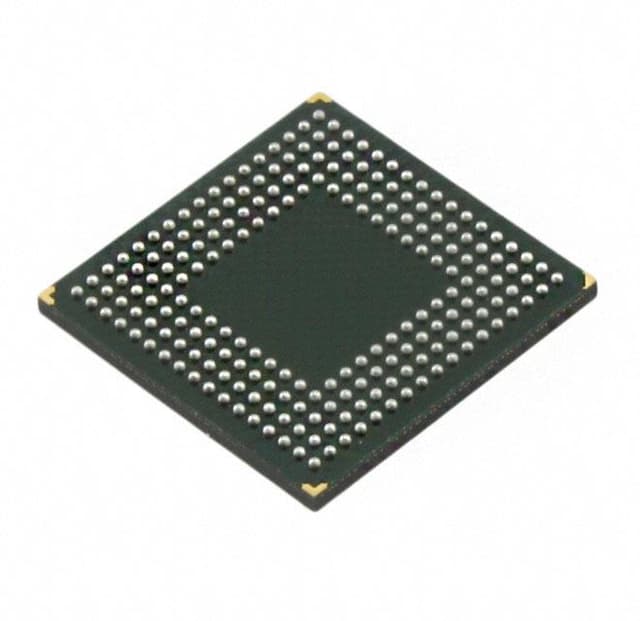

Renesas 70V3579S6BF8

Manufacturer No:

70V3579S6BF8

Manufacturer:

Renesas

Package:

Description:

Surface Mount 208 Pin Memory IC 1.1 Mb kb 15mm mm 310mA mA 36b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

70V3579S6BF8 information

Renesas 70V3579S6BF8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 70V3579S6BF8.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Number of Pins
208

Packaging
Tape & Reel

Published
2008

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
208

Terminal Finish
Tin/Lead (Sn63Pb37)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
PIPELINED OUTPUT MODE, SELF-TIMED WRITE CYCLE

Subcategory
SRAMs

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.8mm

Frequency
83MHz

Time@Peak Reflow Temperature-Max (s)
20

Operating Supply Voltage
3.3V

Temperature Grade
COMMERCIAL

Interface
Parallel

Max Supply Voltage
3.45V

Min Supply Voltage
3.15V

Number of Ports
2

Nominal Supply Current
310mA

Memory Type
RAM, SRAM

Access Time
6 ns

Output Characteristics
3-STATE

Address Bus Width
15b

Density
1.1 Mb

I/O Type
COMMON

Sync/Async
Synchronous

Word Size
36b

Length
15mm

Width
15mm

Thickness
1.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas 70V3579S6BF8.

Datasheets:

integrateddevicetechnology-70v3579s6bf8-datasheets-7840.pdf

70V3579S6BF8 Overview

A RAM, SRAM-type memory can be classified as the memory type of this device. In addition, memory ics is available in a Tape & Reel case as well. A total of 208 terminations have been planted on the chip. The comprehensive working procedure of this part involves 1 functions. In order to power this memory device, 3.3V will be necessary. A 208-pin package containing this memory device is used to house this device. The memory device in question has 208 pins, thus indicating that it has 208 memory locations that can be accessed. There is a note indicating that this memory chip operates at an 3.3V volt supply voltage. The memory chip utilizes a straightforward, high-efficiency mounting method, Surface Mount mounting. There is a nominal supply current rating of 310mA for this memory component. This chip features all the merits of a conventional chip, but it also features PIPELINED OUTPUT MODE, SELF-TIMED WRITE CYCLE to improve system performance. 2 ports allow read/write access to one memory address in this chip. As part of the design, the I/O port addresses are mapped into the memory using an COMMON-bit number. There must not be a minimum operating temperature of less than 0°C for this device. A temperature of no more than 70°C centigrade is recommended for the component to be operated, otherwise, damage might be inflicted on the component. Usually, this memory ics falls under the SRAMs component category. Ideally, this part should be supplied with a voltage of at least 3.15V. An operating voltage of no more than 3.45V is required. A frequency of 83MHz is used to process the data on this memory chip.

70V3579S6BF8 Features

208 Pins
Operating Supply Voltage:3.3V
Additional Feature:PIPELINED OUTPUT MODE, SELF-TIMED WRITE CYCLE
I/O Type: COMMON
Freguency at 83MHz
83MHz terminals

70V3579S6BF8 Applications

There are a lot of Integrated Device Technology (IDT)
70V3579S6BF8 Memory applications.

supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
