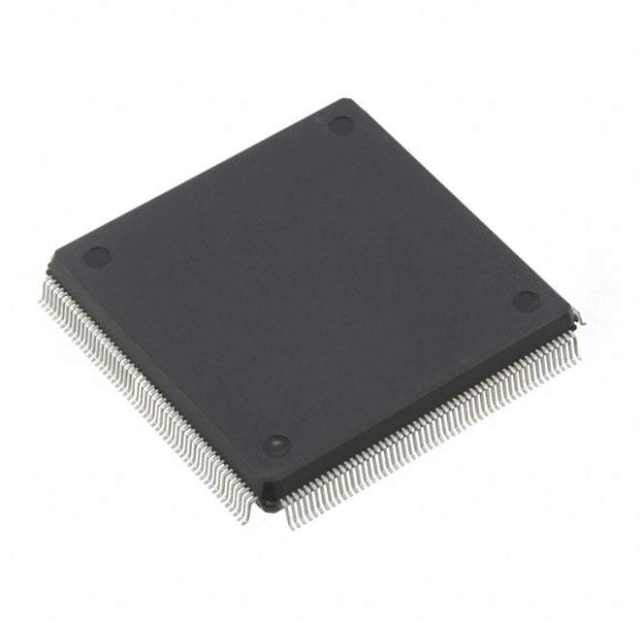

70V3569S4DR Overview

In terms of its memory type, it can be classified as RAM, SDR, SRAM. The case comes in Bulk size. The case is embedded in PQFP. Memory size on the chip is 72kB. On the chip, there are 208 terminations. The comprehensive working procedure is supported by 1 functions in this part. A voltage of 3.3V is required for the operation of this memory device. An 208-pin package is used to package this memory device. A memory device like this has 208 pins, indicating that there are 208 memory locations on the device. There is a note stating that this memory chip operates at 3.3V. It uses Surface Mount mounting, which is an efficient, straightforward mounting method. As far as its nominal supply current is concerned, this memory component carries a rating of 460mA. It also features PIPELINED OUTPUT MODE, SELF TIMED WRITE CYCLE to boost system performance despite all its merits. In this chip, there are 2 ports providing read and/or write access to one memory address. A memory mapped I/O port address of COMMON bits is used in this device. A minimum operating temperature of 0°C is required for this device. It should not be operated above 70°C°C. The SRAMs component is usually regarded as a type of this component. This part should have a minimum supply voltage of at least 3.15V volts in order to function correctly. This part requires a minimum voltage of 3.45V. The frequency of data processing on this memory chip is 133MHz.

70V3569S4DR Features

Package / Case: PQFP
208 Pins
Operating Supply Voltage:3.3V
Additional Feature:PIPELINED OUTPUT MODE, SELF TIMED WRITE CYCLE
I/O Type: COMMON
Freguency at 133MHz
133MHz terminals
