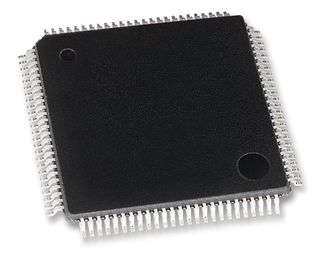

Renesas 709289L9PFI

Manufacturer No:

709289L9PFI

Manufacturer:

Renesas

Package:

TQFP

Description:

5V V Surface Mount 100 Pin Memory IC 1 Mb kb 14mm mm 430mA mA 16b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

709289L9PFI information

Renesas 709289L9PFI technical specifications, attributes, parameters and parts with similar specifications to Renesas 709289L9PFI.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
100

Packaging
Bulk

Published
2005

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
100

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
FLOW-THROUGH OR PIPELINED ARCHITECTURE

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Frequency
40MHz

Pin Count
100

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Interface
Parallel

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Memory Size
128kB

Number of Ports
2

Nominal Supply Current
430mA

Memory Type
RAM, SDR, SRAM

Access Time
9 ns

Organization
64KX16

Output Characteristics
3-STATE

Address Bus Width
32b

Density
1 Mb

Standby Current-Max
0.006A

I/O Type
COMMON

Sync/Async
Synchronous

Word Size
16b

Length
14mm

Height Seated (Max)
1.6mm

Width
14mm

Download datasheets and manufacturer documentation for Renesas 709289L9PFI.

Datasheets:

integrateddevicetechnology-709289l9pfi-datasheets-2611.pdf

integrateddevicetechnology-709289l9pfi-datasheets-8327.pdf

709289L9PFI Overview

RAM, SDR, SRAM is the type of memory it has. There is a Bulk case available. The TQFP case contains it. The chip has an 128kB memory. The chip has 100 terminations. For a comprehensive working procedure, this part supports as many as 1 functions. In order to operate this memory device, it must be supplied with 5V of power. The memory device is enclosed in a package with an 100-pin connector. There are 100 pins on this memory device, which indicates it has 100 memory locations in it. A voltage of 5V is noted as the operating supply voltage for this memory. In this chip, Surface Mount mounting is used, a straightforward, high-efficiency mounting method. In terms of its nominal supply current, this memory component is rated at 430mA. Despite all its merits, this chip also features FLOW-THROUGH OR PIPELINED ARCHITECTURE to boost system performance. A memory address is accessed through 2 ports on this chip. When it comes to power supplies, this memory chip only requires 5V . I/O port addresses on this device are mapped to memory addresses of COMMON bits. This device must operate at a minimum temperature of -40°C. Temperatures no higher than 85°C degrees Celsius are recommended for operation. It is usually considered a type of SRAMs component. It is recommended that the minimum supply voltage for this part be no less than 4.5V. Ideally, this part should be supplied with a voltage of at least 5.5V. Data is processed by this memory ics at a frequency of 40MHz.

709289L9PFI Features

Package / Case: TQFP
100 Pins
Operating Supply Voltage:5V
Additional Feature:FLOW-THROUGH OR PIPELINED ARCHITECTURE
I/O Type: COMMON
Freguency at 40MHz
40MHz terminals

709289L9PFI Applications

There are a lot of Integrated Device Technology (IDT)
709289L9PFI Memory applications.

cell phones
eSRAM
mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
