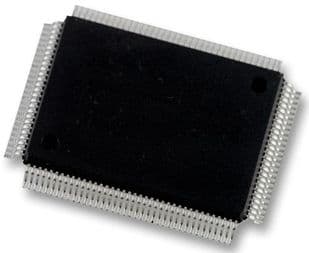

Renesas 7054S25PRF8

Manufacturer No:

7054S25PRF8

Manufacturer:

Renesas

Package:

TQFP

Description:

5V V Surface Mount 128 Pin Memory IC 32 kb kb 20mm mm 300mA mA 8b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

7054S25PRF8 information

Renesas 7054S25PRF8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 7054S25PRF8.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
128

Packaging
Tape & Reel

Published
2009

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
128

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
AUTOMATIC POWER DOWN; LOW POWER STANDBY MODE

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
COMMERCIAL

Interface
Parallel

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Number of Ports
4

Nominal Supply Current
300mA

Memory Type
RAM, SRAM

Access Time
25 ns

Output Characteristics
3-STATE

Address Bus Width
12b

Density
32 kb

Standby Current-Max
0.0015A

I/O Type
COMMON

Sync/Async
Asynchronous

Word Size
8b

Length
20mm

Height Seated (Max)
1.6mm

Width
14mm

Thickness
1.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 7054S25PRF8.

Datasheets:

integrateddevicetechnology-7054s25prf8-datasheets-7849.pdf

7054S25PRF8 Overview

As far as memory types are concerned, RAM, SRAM is considered to be its memory type. In addition, memory ics is available in a Tape & Reel case as well. In the case of TQFP, it is embedded within the case. On the chip, there are 128 terminations that are planted. The part supports at least 1 functions to ensure a comprehensive working process. In order to function properly, this ic memory chip should be powered by a voltage of 5V. The memory device has an 128-pin package, which encloses it in a small package. I have noticed that the memory device has 128 pins, which indicates that it has 128 locations in the memory. According to the datasheet, this memory chip operates at an operating voltage of 5V. In this chip, the Surface Mount mounting method is used, a straightforward, high-efficiency mounting method. In terms of its nominal supply current, this memory component has a rating of 300mA. The memory chip also offers AUTOMATIC POWER DOWN; LOW POWER STANDBY MODE to level up system performance despite its merits. The memory chip has 4 ports for granting read/write access to one memory address. There is only a single power supply required for this memory chip. There are I/O ports on this memory ics that have COMMON-bit memory mapping. Temperatures below 0°C should not be used with this memory ics. It is recommended that operation of the part be restricted to temperatures not exceeding 70°C, otherwise damage to the part may occur as a result of overheating. In most cases, this memory ics is regarded as being a type of SRAMs. It is recommended that this part be supplied with at least 4.5V volts. The operating voltage shall not exceed 5.5V.

7054S25PRF8 Features

Package / Case: TQFP
128 Pins
Operating Supply Voltage:5V
Additional Feature:AUTOMATIC POWER DOWN; LOW POWER STANDBY MODE
I/O Type: COMMON

7054S25PRF8 Applications

There are a lot of Integrated Device Technology (IDT)
7054S25PRF8 Memory applications.

servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
