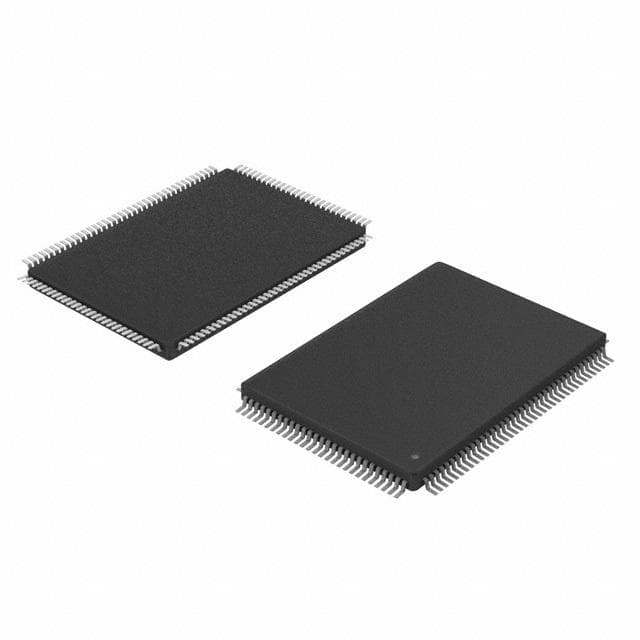

Renesas 7054L20PRF

Manufacturer No:

7054L20PRF

Manufacturer:

Renesas

Package:

TQFP

Description:

5V V Surface Mount 128 Pin Memory IC 32 kb kb 20mm mm 250mA mA 8b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

7054L20PRF information

Renesas 7054L20PRF technical specifications, attributes, parameters and parts with similar specifications to Renesas 7054L20PRF.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
128

Published
2009

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
128

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
AUTOMATIC POWER DOWN; LOW POWER STANDBY MODE

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
FLAT

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Pin Count
128

Power Supplies
5V

Temperature Grade
COMMERCIAL

Interface
Parallel

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Memory Size
4kB

Number of Ports
4

Nominal Supply Current
250mA

Memory Type
RAM, SDR, SRAM

Access Time
20 ns

Output Characteristics
3-STATE

Address Bus Width
12b

Density
32 kb

Standby Current-Max
0.0015A

I/O Type
COMMON

Sync/Async
Asynchronous

Word Size
8b

Standby Voltage-Min
2V

Length
20mm

Height Seated (Max)
1.6mm

Width
14mm

Thickness
1.4mm

Radiation Hardening
No

Download datasheets and manufacturer documentation for Renesas 7054L20PRF.

Datasheets:

integrateddevicetechnology-7054l20prf-datasheets-7663.pdf

integrateddevicetechnology-7054l20prf-datasheets-6483.pdf

7054L20PRF Overview

RAM, SDR, SRAM is the type of memory it has. The TQFP case contains it. The chip has an 4kB memory. The chip has 128 terminations. For a comprehensive working procedure, this part supports as many as 1 functions. In order to operate this memory device, it must be supplied with 5V of power. The memory device is enclosed in a package with an 128-pin connector. There are 128 pins on this memory device, which indicates it has 128 memory locations in it. A voltage of 5V is noted as the operating supply voltage for this memory. In this chip, Surface Mount mounting is used, a straightforward, high-efficiency mounting method. In terms of its nominal supply current, this memory component is rated at 250mA. Despite all its merits, this chip also features AUTOMATIC POWER DOWN; LOW POWER STANDBY MODE to boost system performance. A memory address is accessed through 4 ports on this chip. When it comes to power supplies, this memory chip only requires 5V . I/O port addresses on this device are mapped to memory addresses of COMMON bits. This device must operate at a minimum temperature of 0°C. Temperatures no higher than 70°C degrees Celsius are recommended for operation. It is usually considered a type of SRAMs component. It is recommended that the minimum supply voltage for this part be no less than 4.5V. Ideally, this part should be supplied with a voltage of at least 5.5V.

7054L20PRF Features

Package / Case: TQFP
128 Pins
Operating Supply Voltage:5V
Additional Feature:AUTOMATIC POWER DOWN; LOW POWER STANDBY MODE
I/O Type: COMMON

7054L20PRF Applications

There are a lot of Integrated Device Technology (IDT)
7054L20PRF Memory applications.

cell phones
eSRAM
mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
