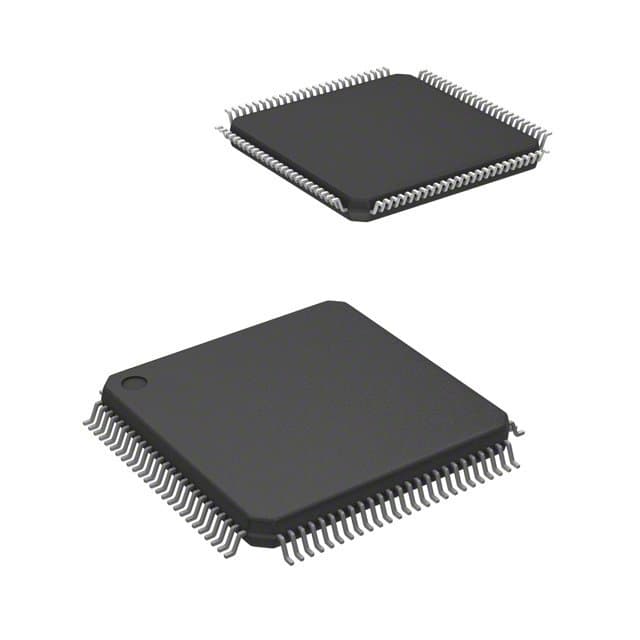

Renesas 7034S20PF

Manufacturer No:

7034S20PF

Manufacturer:

Renesas

Package:

TQFP

Description:

5V V Surface Mount 100 Pin Memory IC 72 kb kb 14mm mm 290mA mA 18b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

7034S20PF information

Renesas 7034S20PF technical specifications, attributes, parameters and parts with similar specifications to Renesas 7034S20PF.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
100

Published
2009

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
100

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
20

Pin Count
100

Power Supplies
5V

Temperature Grade
COMMERCIAL

Interface
Parallel

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Memory Size
9kB

Number of Ports
2

Nominal Supply Current
290mA

Memory Type
RAM, SDR, SRAM

Access Time
20 ns

Organization
4KX18

Output Characteristics
3-STATE

Address Bus Width
12b

Density
72 kb

Standby Current-Max
0.015A

I/O Type
COMMON

Sync/Async
Asynchronous

Word Size
18b

Length
14mm

Height Seated (Max)
1.6mm

Width
14mm

Thickness
1.4mm

Radiation Hardening
No

Download datasheets and manufacturer documentation for Renesas 7034S20PF.

Datasheets:

integrateddevicetechnology-7034s20pf-datasheets-4050.pdf

integrateddevicetechnology-7034s20pf-datasheets-2739.pdf

7034S20PF Overview

In this case, the memory type of the device can be classified as RAM, SDR, SRAM. An embedded TQFP case surrounds memory ics. It is estimated that the memory size on the chip is 9kB. It is planted on the chip with 100 terminations. It supports up to 1 functions for comprehensive operation. There is a requirement for 5V to be supplied to this ic memory chip in order to operate. The ic memory chip comes in a package with 100 pins that allows it to be connected to a computer. The memory device has a total of 100 pins, thus indicating that it has a total of 100 memory locations. It is noted that the operating supply voltage of this memory is 5V. This chip uses Surface Mount mounting, a straightforward, high-efficiency method of mounting. It is rated 290mA for its nominal supply current when it comes to the memory component. Several ports on this chip are used to access one memory address for reading and writing. In terms of power requirements, this memory chip uses only 5V . I/O port addresses in this device are mapped to COMMON bits from the device's memory. In order for this device to function properly, its operating temperature must not be less than 0°C. The temperature should not exceed 70°C degrees Celsius. SRAMs components are usually considered types of this component. This memory ics should not be operated with a voltage below 4.5V volts at the minimum. There shall be a voltage limit of 5.5V for its operation.

7034S20PF Features

Package / Case: TQFP
100 Pins
Operating Supply Voltage:5V
I/O Type: COMMON

7034S20PF Applications

There are a lot of Integrated Device Technology (IDT)
7034S20PF Memory applications.

networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
