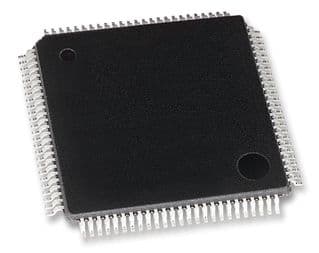

Renesas 70261S55PFG

Manufacturer No:

70261S55PFG

Manufacturer:

Renesas

Package:

TQFP

Description:

Surface Mount 100 Pin Memory IC 256 kb kb 14mm mm 270mA mA 16b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

70261S55PFG information

Renesas 70261S55PFG technical specifications, attributes, parameters and parts with similar specifications to Renesas 70261S55PFG.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
100

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
100

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
INTERRUPT FLAG; SEMAPHORE; AUTOMATIC POWER-DOWN; LOW POWER STANDBY MODE

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Pin Count
100

Operating Supply Voltage
5V

Temperature Grade
COMMERCIAL

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Memory Size
32kB

Number of Ports
2

Nominal Supply Current
270mA

Memory Type
RAM, SDR, SRAM

Access Time
55 ns

Organization
16KX16

Address Bus Width
28b

Density
256 kb

Sync/Async
Asynchronous

Word Size
16b

Length
14mm

Width
14mm

Thickness
1.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 70261S55PFG.

Datasheets:

integrateddevicetechnology-70261s55pfg-datasheets-9648.pdf

integrateddevicetechnology-70261s55pfg-datasheets-6609.pdf

70261S55PFG Overview

As far as memory types are concerned, RAM, SDR, SRAM is considered to be its memory type. In the case of TQFP, it is embedded within the case. A memory chip with a capacity of 32kB is used on this device. On the chip, there are 100 terminations that are planted. The part supports at least 1 functions to ensure a comprehensive working process. In order to function properly, this ic memory chip should be powered by a voltage of 5V. The memory device has an 100-pin package, which encloses it in a small package. I have noticed that the memory device has 100 pins, which indicates that it has 100 locations in the memory. According to the datasheet, this memory chip operates at an operating voltage of 5V. In this chip, the Surface Mount mounting method is used, a straightforward, high-efficiency mounting method. In terms of its nominal supply current, this memory component has a rating of 270mA. The memory chip also offers INTERRUPT FLAG; SEMAPHORE; AUTOMATIC POWER-DOWN; LOW POWER STANDBY MODE to level up system performance despite its merits. The memory chip has 2 ports for granting read/write access to one memory address. Temperatures below 0°C should not be used with this memory ics. It is recommended that operation of the part be restricted to temperatures not exceeding 70°C, otherwise damage to the part may occur as a result of overheating. It is recommended that this part be supplied with at least 4.5V volts. The operating voltage shall not exceed 5.5V.
