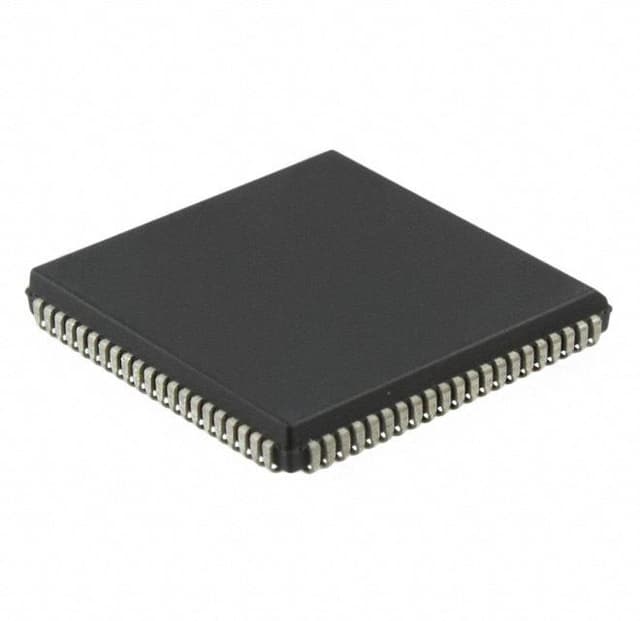

Renesas 7025S35J8

Manufacturer No:

7025S35J8

Manufacturer:

Renesas

Package:

PLCC

Description:

5V V Surface Mount 84 Pin Memory IC 128 kb kb 29.21mm mm 250mA mA 16b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

7025S35J8 information

Renesas 7025S35J8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 7025S35J8.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Package / Case
PLCC

Number of Pins
84

Published
2008

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
84

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
INTERRUPT FLAG; AUTOMATIC POWER-DOWN; SEMAPHORE

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
5V

Pin Count
84

Operating Supply Voltage
5V

Temperature Grade
COMMERCIAL

Interface
Parallel

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Memory Size
16kB

Number of Ports
2

Nominal Supply Current
250mA

Memory Type
RAM, SDR, SRAM

Access Time
35 ns

Organization
8KX16

Output Characteristics
3-STATE

Address Bus Width
26b

Density
128 kb

Standby Current-Max
0.015A

I/O Type
COMMON

Sync/Async
Asynchronous

Word Size
16b

Length
29.21mm

Height Seated (Max)
4.57mm

Width
29.21mm

Thickness
3.63mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 7025S35J8.

Datasheets:

integrateddevicetechnology-7025s35j8-datasheets-2792.pdf

7025S35J8 Overview

A RAM, SDR, SRAM-type memory can be classified as the memory type of this device. Embedded in the PLCC case, memory ics is a single file. On the chip, there is an 16kB memory, which is the size of the chip's memory. A total of 84 terminations have been planted on the chip. The comprehensive working procedure of this part involves 1 functions. In order to power this memory device, 5V will be necessary. A 84-pin package containing this memory device is used to house this device. The memory device in question has 84 pins, thus indicating that it has 84 memory locations that can be accessed. There is a note indicating that this memory chip operates at an 5V volt supply voltage. The memory chip utilizes a straightforward, high-efficiency mounting method, Surface Mount mounting. There is a nominal supply current rating of 250mA for this memory component. This chip features all the merits of a conventional chip, but it also features INTERRUPT FLAG; AUTOMATIC POWER-DOWN; SEMAPHORE to improve system performance. 2 ports allow read/write access to one memory address in this chip. As for power supplies, this memory chip requires just 5V . As part of the design, the I/O port addresses are mapped into the memory using an COMMON-bit number. There must not be a minimum operating temperature of less than 0°C for this device. A temperature of no more than 70°C centigrade is recommended for the component to be operated, otherwise, damage might be inflicted on the component. Usually, this memory ics falls under the SRAMs component category. Ideally, this part should be supplied with a voltage of at least 4.5V. An operating voltage of no more than 5.5V is required.

7025S35J8 Features

Package / Case: PLCC
84 Pins
Operating Supply Voltage:5V
Additional Feature:INTERRUPT FLAG; AUTOMATIC POWER-DOWN; SEMAPHORE
I/O Type: COMMON

7025S35J8 Applications

There are a lot of Integrated Device Technology (IDT)
7025S35J8 Memory applications.

supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
