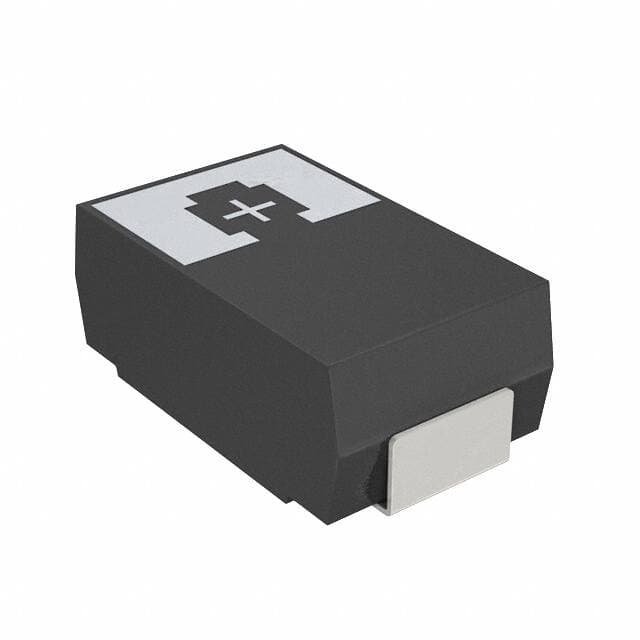

PANASONIC 6TAB47M
PANASONIC 6TAB47M

PANASONIC 6TAB47M

Manufacturer No:

6TAB47M

Manufacturer:

PANASONIC

Package:

1411 (3528 Metric)

Description:

Molded POSCAP? TA 47?F Capacitor 3 (168 Hours) ±20% 1411 (3528 Metric) Surface Mount General Purpose -55°C~105°C Tape & Reel (TR)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

6TAB47M information

PANASONIC 6TAB47M technical specifications, attributes, parameters and parts with similar specifications to PANASONIC 6TAB47M.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 1411 (3528 Metric)
  • Terminal Shape
  • J BEND
  • Number of Pins
  • 2
  • Dielectric Material
  • Tantalum
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • POSCAP? TA
  • Size / Dimension
  • 0.138Lx0.110W 3.50mmx2.80mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e4
  • Feature
  • General Purpose
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Type
  • Molded
  • Terminal Finish
  • Palladium/Gold (Pd/Au)
  • Additional Feature
  • RIPPLE CURRENT MEASURED AT 100KHZ TO 500 KHZ
  • Capacitance
  • 47?F
  • Voltage - Rated DC
  • 6.3V
  • Depth
  • 2.8mm
  • Case Code (Metric)
  • 3528
  • Case Code (Imperial)
  • 1411
  • ESR (Equivalent Series Resistance)
  • 70mOhm @ 100kHz
  • Polarity
  • POLARIZED
  • Voltage
  • 6.3V
  • Lifetime @ Temp
  • 1000 Hrs @ 105°C
  • Leakage Current
  • 29.6?A
  • Ripple Current
  • 1100mA
  • Life (Hours)
  • 1000 hours
  • Dissipation Factor
  • 8 %
  • Height
  • 1.9mm
  • Height Seated (Max)
  • 0.083 2.10mm
  • Length
  • 3.5mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for PANASONIC 6TAB47M.

Datasheets:

6TAB47M Overview


Measured ripple current for the part is 1100mA.In order to maintain high efficiency, the ESR (Equivalent Series Resistance) should remain at 70mOhm @ 100kHz.The leakage current of 29.6?A can be supported.47?F is the capacitance of the device.As a result, the voltage - rated DC of 6.3V is used to ensure its reliability.Powered by a voltage of -55°C~105°C, it is powered by AC power.The maximum height seated of 0.083 2.10mm°C enables stable operation.

6TAB47M Features


1100mA ripple current
a 70mOhm @ 100kHz ESR (Equivalent Series Resistance)
a leakage current of 29.6?A
with a capacitance of 47?F
the voltage - rated DC of 6.3V
an AC voltage of -55°C~105°C


6TAB47M Applications


There are a lot of Panasonic Electronic Components
6TAB47M applications of tantalum polymer capacitors.


  • Smart phone
  • Tablets
  • Notebook
  • LCD TV
  • Power supplies
