694106301002 Information
WURTH 694106301002 technical specifications, attributes, parameters and parts with similar specifications to WURTH 694106301002.
- Type
- Parameter
- Factory Lead Time
- 63 Weeks
- Contact Material
- Copper Alloy
- Contact Plating
- Tin
- Mount
- Through Hole
- Mounting Type
- Through Hole, Right Angle
- Housing Material
- Polyamide (PA66), Nylon 6/6
- Contact Material - Plating
- Tin
- Operating Temperature
- -40°C~85°C
- Packaging
- Bulk
- Series
- WR-DC
- Type
- Parameter
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Solder Eyelet(s)
- Connector Type
- Jack
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Color
- Black
- Gender
- Male
- Voltage - Rated
- 24VDC
- Voltage - Rated DC
- 20V
Download datasheets and manufacturer documentation for WURTH 694106301002.
Datasheets:
Environmental Information:

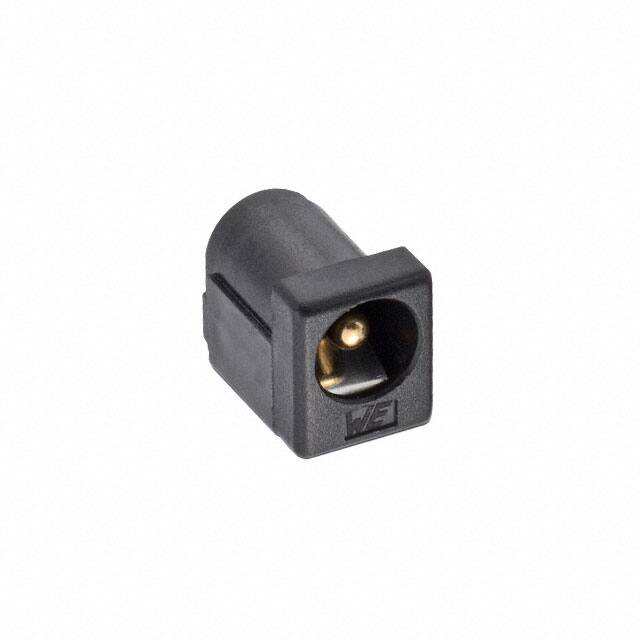

The Wurth Elektronik Barrel - Power Connectors 694106301002 is a 2.1 x 5.5mm solder power jack connector. It is designed for use in a variety of applications, including power supplies, audio/video equipment, and consumer electronics. The connector features a robust design with a high current rating of up to 10A and a voltage rating of up to 250V. It is also UL and CSA approved for safety and reliability.
Features:
? 2.1 x 5.5mm solder power jack connector
? High current rating of up to 10A
? Voltage rating of up to 250V
? Robust design for durability
? UL and CSA approved for safety and reliability
Applications:
The Wurth Elektronik Barrel - Power Connectors 694106301002 is suitable for use in a variety of applications, including power supplies, audio/video equipment, and consumer electronics. It is also suitable for use in automotive, industrial, and medical applications.
