WURTH 692141030100
WURTH 692141030100

WURTH 692141030100

Manufacturer No:

692141030100

Manufacturer:

WURTH

Package:

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

692141030100 information

WURTH 692141030100 technical specifications, attributes, parameters and parts with similar specifications to WURTH 692141030100.

  • Type
  • Parameter
  • Factory Lead Time
  • 15 Weeks
  • Contact Material
  • Gold, Nickel
  • Contact Plating
  • Gold
  • Mount
  • Horizontal, Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Mounting Feature
  • Horizontal
  • Shell/Shielding Material
  • Brass
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tray
  • Series
  • WR-COM
  • Feature
  • Board Lock
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • USB-A (USB TYPE-A), Stacked
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Color
  • Blue
  • Gender
  • Receptacle
  • Voltage - Rated
  • 30VAC
  • Current Rating (Amps)
  • 0.25A 1.8A
  • Orientation
  • Horizontal, Right Angle
  • Shielding
  • Shielded
  • Current Rating
  • 250mA
  • Contact Finish
  • Gold
  • Voltage - Rated AC
  • 30V
  • Number of Contacts
  • 18
  • Operating Supply Voltage
  • 30V
  • Contact Resistance
  • 50mOhm
  • Insulation Resistance
  • 100MOhm
  • Number of Ports
  • 1
  • Mating Cycles
  • 5000
  • Specifications
  • USB 3.0 (USB 3.1 Gen 1, Superspeed)
  • USB
  • USB 3.0
  • Height
  • 16.335mm
  • Length
  • 15.59mm
  • Width
  • 19.7mm
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for WURTH 692141030100.

Datasheets:

Environmental Information:

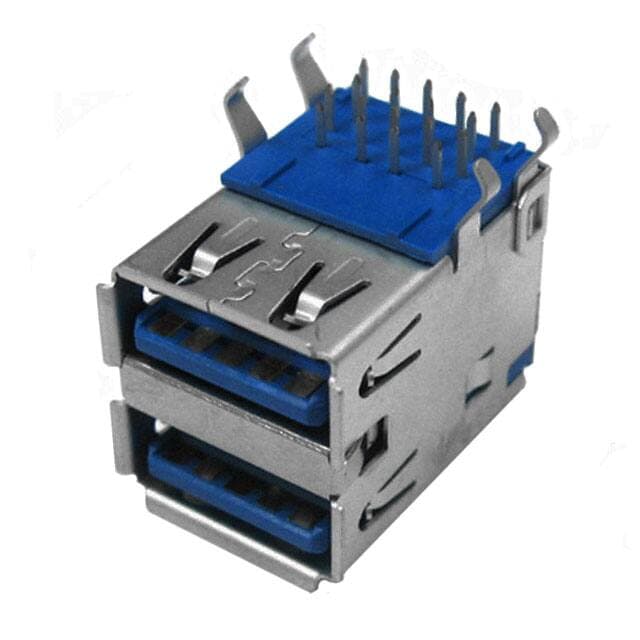

Description: The Wurth Elektronik 692141030100 is a USB 3.0 Type A receptacle connector with a stackable right angle surface mount design.

Features:
- USB 3.0 Type A receptacle connector
- Stackable right angle surface mount design
- Rated current of 1.5A
- Rated voltage of 30V
- Operating temperature range of -25°C to +85°C

Applications: The Wurth Elektronik 692141030100 is suitable for use in a variety of applications, including consumer electronics, automotive, and industrial applications. It is ideal for connecting USB 3.0 devices, such as external hard drives, digital cameras, and other USB 3.0 peripherals.
