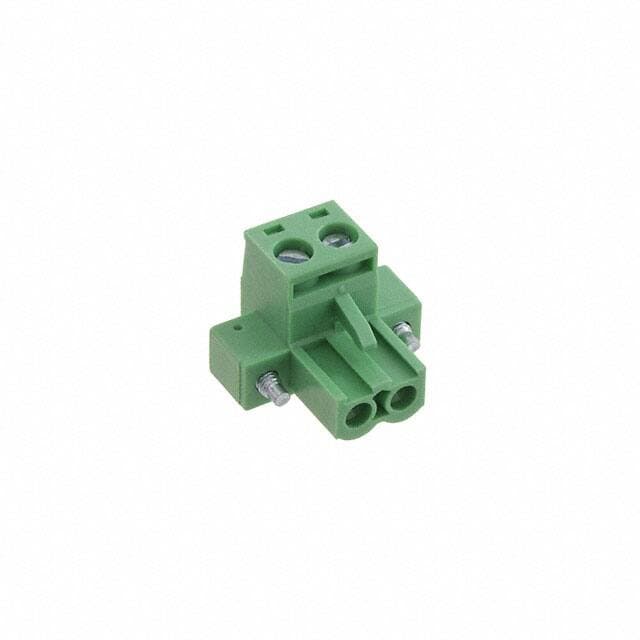

WURTH 691343710002

Manufacturer No:

691343710002

Manufacturer:

Package:

Description:

Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets WR-TBL Series 3437 Polyamide (PA66), Nylon 6/6 Brass

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

691343710002 information

WURTH 691343710002 technical specifications, attributes, parameters and parts with similar specifications to WURTH 691343710002.

Type
Parameter

Factory Lead Time
8 Weeks

Contact Material
Brass

Mounting Type
Free Hanging (In-Line)

Housing Material
Polyamide (PA66), Nylon 6/6

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
WR-TBL Series 3437

Feature
Mating Flange, Retention Latches (Non-Wire Side)

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Type
Plug, Female Sockets

Number of Positions
2

Color
Green

Pitch
0.197 5.00mm

Insulation Height
0.594 15.09mm

Termination Style
Screw - Leaf Spring, Wire Guard

Number of Levels
1

Voltage - UL
300V

Wire Gauge or Range - AWG
12-24 AWG

Current - UL
20A

Torque - Screw
0.56 Nm (5.0 Lb-In)

Positions Per Level
2

Plug Wire Entry
180°

Wire Gauge or Range - mm²
0.21-3.31mm2

Screw Size
M3

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for WURTH 691343710002.

Datasheets:

wrthelektronik-691343710003-datasheets-3951.pdf

691343710002 Overview

Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the WR-TBL Series 3437 Series.In many ways, Mating Flange, Retention Latches (Non-Wire Side) makes it more powerful.Operating temperature is set to -40°C~105°C.It is a part that shares many benefits with other products from the Plug, Female Sockets line.

691343710002 Features

WR-TBL Series 3437 series

691343710002 Applications

There are a lot of Würth Elektronik
691343710002 Terminal Blocks applications.

Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
