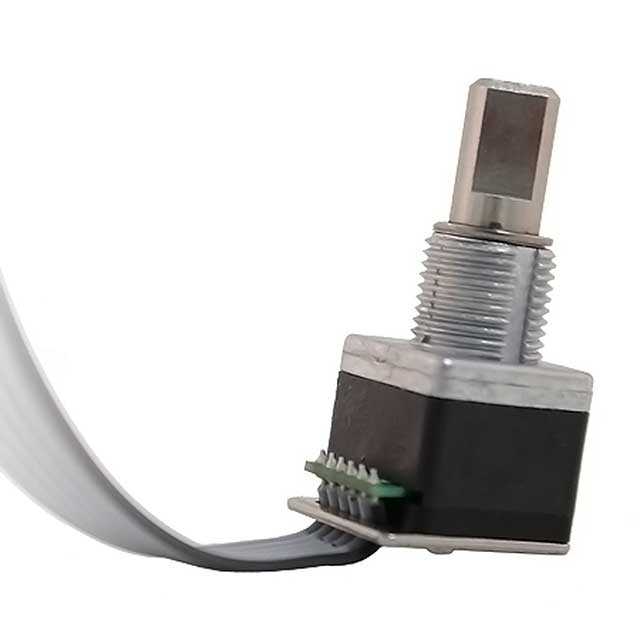

Grayhill Inc. 68PARN-020C

Manufacturer No:

68PARN-020C

Manufacturer:

Grayhill Inc.

Package:

Box with Connector

Description:

68P Series For Measuring Rotary Position Cable with Connector Flatted Shaft -40°C~85°C Analog Voltage 4.5V~5.5V ±1% 0° ~ 360°, Continuous Clockwise Increase Hall Effect Box with Connector

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

68PARN-020C information

Grayhill Inc. 68PARN-020C technical specifications, attributes, parameters and parts with similar specifications to Grayhill Inc. 68PARN-020C.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Panel

Mounting Type
Panel Mount

Package / Case
Box with Connector

Operating Temperature
-40°C~85°C

Packaging
Bag

Series
68P

Published
2015

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Connector

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Technology
Hall Effect

Voltage - Supply
4.5V~5.5V

Output
Analog Voltage

Termination Style
Cable with Connector

Actuator Type
Flatted Shaft

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Linearity
±1%

Sensing Method
Hall Effect

For Measuring
Rotary Position

Output Signal
Clockwise Increase

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Grayhill Inc. 68PARN-020C.

68PARN-020C Overview

To protect the linear position measuring sensors from damage, they are packaged in Box with Connector packages. The Bag package contains this electronic component. For the angle position measuring sensors to function normally, the minimum operating temperature can be set to -40°C. Angle position measuring sensors, however, cannot operate above 85°C. For safe operation, the linear position measurement sensor's supply voltage cannot exceed 5.5V.

68PARN-020C Features

Supply Voltage: 4.5V~5.5V
Operating Temperature: -40°C~85°C
68P Series
Mount: Panel
Package / Case: Box with Connector
Mounting Type: Panel Mount

68PARN-020C Applications

There are a lot of Grayhill Inc.
68PARN-020C Angle & Linear Position Measuring Sensors applications.

Control elements
Electric meters (anti tampering)
Volume control on audio equipment
Motion controllers
Dishwasher control systems
Automotive temperature range
Robotic joint position detection
Industrial motor position control
Medical robots and fitness equipment
Absolute Rotary Position Sensor
