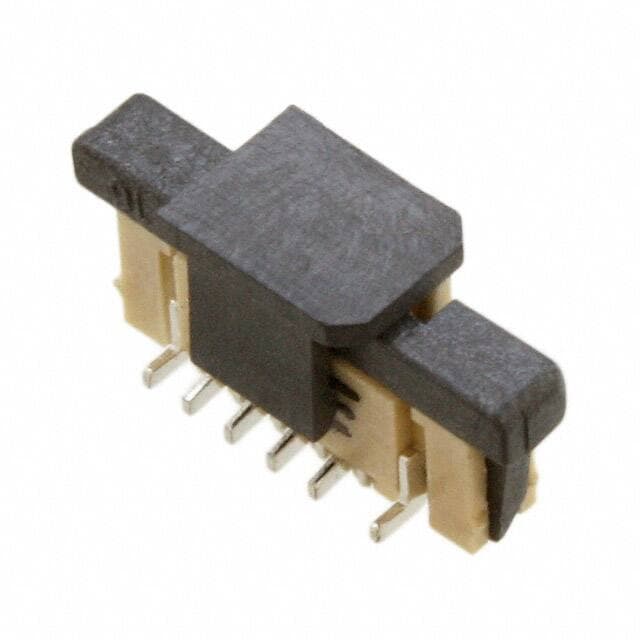

WURTH 687308124422
WURTH 687308124422

WURTH 687308124422

Manufacturer No:

687308124422

Manufacturer:

WURTH

Package:

Description:

WR-FPC Series FPC Contacts, Vertical - 1 Sided Cut Tape (CT) 0.020 0.50mm Solder 8 Positions Surface Mount Tin -25°C~85°C 0.5A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

687308124422 information

WURTH 687308124422 technical specifications, attributes, parameters and parts with similar specifications to WURTH 687308124422.

  • Type
  • Parameter
  • Contact Material
  • Phosphor Bronze
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Number of Pins
  • 8
  • Housing Material
  • Liquid Crystal Polymer (LCP)
  • Actuator Material
  • Liquid Crystal Polymer (LCP)
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Cut Tape (CT)
  • Series
  • WR-FPC
  • Feature
  • Zero Insertion Force (ZIF)
  • Part Status
  • Discontinued
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Number of Positions
  • 8
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -25°C
  • Number of Rows
  • 2
  • Gender
  • Receptacle
  • Voltage - Rated
  • 50V
  • Current Rating (Amps)
  • 0.5A
  • Pitch
  • 0.020 0.50mm
  • Orientation
  • Vertical
  • Current Rating
  • 500mA
  • Lead Pitch
  • 500?m
  • Number of Contacts
  • 8
  • Housing Color
  • Ivory
  • Operating Supply Voltage
  • 50V
  • Contact Resistance
  • 20mOhm
  • Insulation Resistance
  • 100MOhm
  • Mating Cycles
  • 25
  • Flat Flex Type
  • FPC
  • Connector/Contact Type
  • Contacts, Vertical - 1 Sided
  • Cable End Type
  • Tapered
  • Locking Feature
  • Slide Lock
  • Actuator Color
  • Black
  • Contact Location
  • Side
  • Length
  • 10.4mm
  • Width
  • 3.5mm
  • Contact Finish Thickness
  • 100.0?in 2.54?m
  • Height Above Board
  • 0.169 4.30mm
  • FFC, FCB Thickness
  • 0.29mm ~ 0.34mm
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for WURTH 687308124422.

Datasheets:

Environmental Information:

687308124422 Overview


Mounting type is Surface Mount.To package the product, we use a Cut Tape (CT) case.This product is from the WR-FPC Series.8 pins are available on the device.It is best used at temperatures below 85°C.-25°C is the minimum temperature this device can operate at.A number of advantages are provided by its Zero Insertion Force (ZIF) feature.Mounted by Surface Mount.In this memory, the operating supply voltage is 50V.Device runs at -25°C~85°C Operating Temperature.

687308124422 Features


WR-FPC series


687308124422 Applications


There are a lot of Würth Elektronik
687308124422 FFC, FPC (Flat Flexible) Connectors applications.


  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
