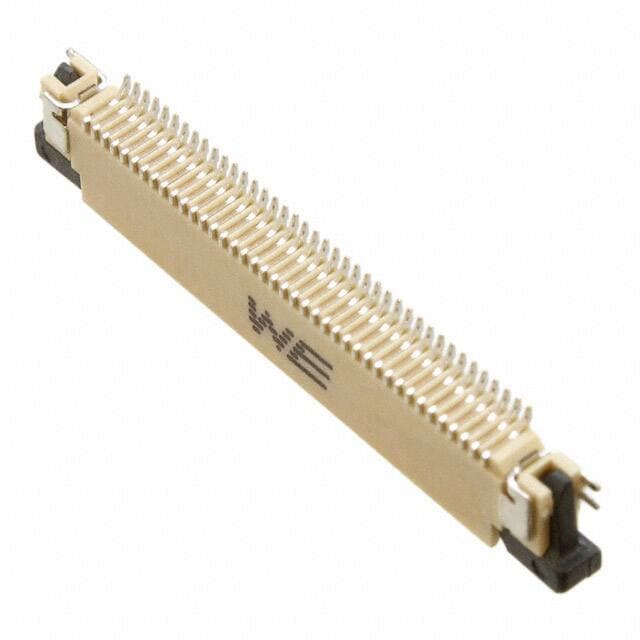

WURTH 68714014022
WURTH 68714014022

WURTH 68714014022

Manufacturer No:

68714014022

Manufacturer:

WURTH

Package:

Description:

WR-FPC Series FPC Contacts, Top Cut Tape (CT) 0.020 0.50mm Solder 40 Positions Surface Mount, Right Angle Tin -25°C~85°C 0.5A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

68714014022 information

WURTH 68714014022 technical specifications, attributes, parameters and parts with similar specifications to WURTH 68714014022.

  • Type
  • Parameter
  • Contact Material
  • Phosphor Bronze
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Number of Pins
  • 40
  • Housing Material
  • Liquid Crystal Polymer (LCP)
  • Actuator Material
  • Liquid Crystal Polymer (LCP)
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Cut Tape (CT)
  • Series
  • WR-FPC
  • Feature
  • Zero Insertion Force (ZIF)
  • Part Status
  • Discontinued
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Number of Positions
  • 40
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -25°C
  • Number of Rows
  • 1
  • Gender
  • Receptacle
  • Voltage - Rated
  • 50V
  • Current Rating (Amps)
  • 0.5A
  • Pitch
  • 0.020 0.50mm
  • Orientation
  • Horizontal
  • Current Rating
  • 500mA
  • Lead Pitch
  • 500?m
  • Number of Contacts
  • 40
  • Housing Color
  • Ivory
  • Operating Supply Voltage
  • 50V
  • Contact Resistance
  • 20mOhm
  • Insulation Resistance
  • 100MOhm
  • Mating Cycles
  • 25
  • Flat Flex Type
  • FPC
  • Connector/Contact Type
  • Contacts, Top
  • Cable End Type
  • Tapered
  • Locking Feature
  • Slide Lock
  • Actuator Color
  • Black
  • Contact Location
  • Top
  • Length
  • 26.5mm
  • Width
  • 2.1mm
  • Contact Finish Thickness
  • 100.0?in 2.54?m
  • Height Above Board
  • 0.079 2.00mm
  • FFC, FCB Thickness
  • 0.30mm
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for WURTH 68714014022.

Datasheets:

Environmental Information:

68714014022 Overview


This device has a Surface Mount, Right Angle mounting type.An orange Cut Tape (CT) case is used to package the product.Specifically, it is one of the products in the WR-FPC Series.There are 40 pins on the device.If the temperature is below 85°C, it's best to use it.-25°C is the minimum temperature for this device.Several benefits come from the Zero Insertion Force (ZIF) feature.There is a mounting hole at Surface Mount.It runs on 50V voltage.Devices operate at -25°C~85°C operating temperatures.

68714014022 Features


WR-FPC series


68714014022 Applications


There are a lot of Würth Elektronik
68714014022 FFC, FPC (Flat Flexible) Connectors applications.


  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
