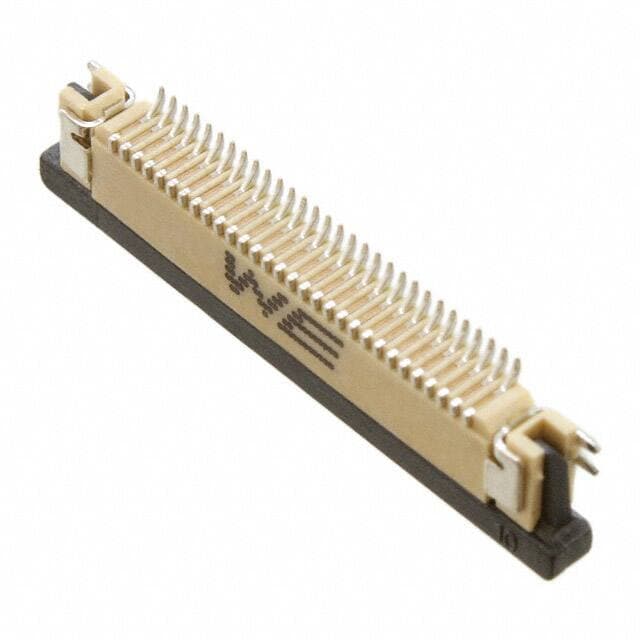

WURTH 68713014522
WURTH 68713014522

WURTH 68713014522

Manufacturer No:

68713014522

Manufacturer:

WURTH

Package:

Description:

WR-FPC Series FPC Contacts, Bottom Cut Tape (CT) 0.020 0.50mm Solder 30 Positions Surface Mount, Right Angle Tin -25°C~85°C 0.5A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

68713014522 information

WURTH 68713014522 technical specifications, attributes, parameters and parts with similar specifications to WURTH 68713014522.

  • Type
  • Parameter
  • Factory Lead Time
  • 63 Weeks
  • Contact Material
  • Phosphor Bronze
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Number of Pins
  • 30
  • Housing Material
  • Liquid Crystal Polymer (LCP)
  • Actuator Material
  • Liquid Crystal Polymer (LCP)
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Cut Tape (CT)
  • Series
  • WR-FPC
  • Feature
  • Zero Insertion Force (ZIF)
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Number of Positions
  • 30
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -25°C
  • Number of Rows
  • 1
  • Gender
  • Receptacle
  • Voltage - Rated
  • 50V
  • Current Rating (Amps)
  • 0.5A
  • Pitch
  • 0.020 0.50mm
  • Orientation
  • Horizontal
  • Contact Finish
  • Tin
  • Lead Pitch
  • 500?m
  • Number of Contacts
  • 30
  • Housing Color
  • Ivory
  • Operating Supply Voltage
  • 50V
  • Contact Resistance
  • 20mOhm
  • Insulation Resistance
  • 100MOhm
  • Mating Cycles
  • 25
  • Flat Flex Type
  • FPC
  • Connector/Contact Type
  • Contacts, Bottom
  • Cable End Type
  • Tapered
  • Locking Feature
  • Slide Lock
  • Actuator Color
  • Black
  • Contact Location
  • Top
  • Length
  • 21.4mm
  • Width
  • 2.1mm
  • Contact Finish Thickness
  • 100.0?in 2.54?m
  • Height Above Board
  • 0.079 2.00mm
  • FFC, FCB Thickness
  • 0.30mm
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for WURTH 68713014522.

Datasheets:

Environmental Information:

68713014522 Overview


A Surface Mount, Right Angle mounting type is specified for the device.A Cut Tape (CT) case is used for packaging.The product belongs to the WR-FPC Series.It has 30 pins on the back of the device.You should use it at a temperature below 85°C.Temperatures below -25°C are required for operation of this device.A number of aspects of its Zero Insertion Force (ZIF) feature make it more powerful.By Surface Mount it's mounted.According to the datasheet, this memory operates at an operating voltage of 50V.In this case, the device runs at -25°C~85°C Operating Temperature.

68713014522 Features


WR-FPC series


68713014522 Applications


There are a lot of Würth Elektronik
68713014522 FFC, FPC (Flat Flexible) Connectors applications.


  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
