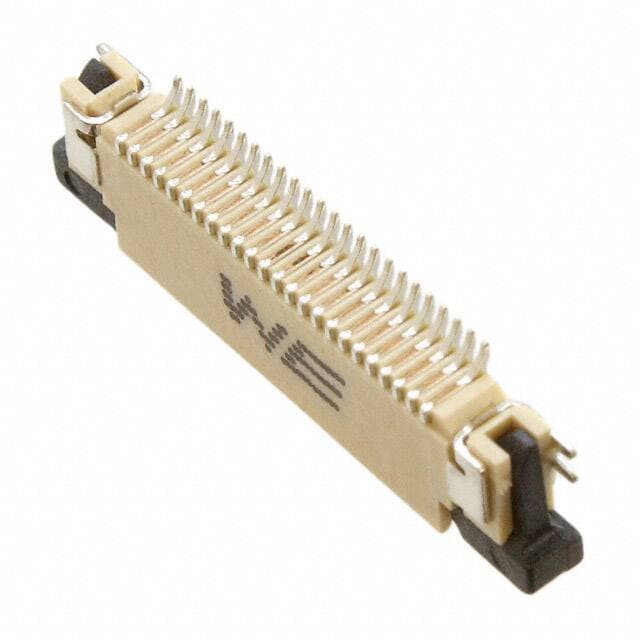

WURTH 68712414022
WURTH 68712414022

WURTH 68712414022

Manufacturer No:

68712414022

Manufacturer:

WURTH

Package:

Description:

WR-FPC Series FPC Contacts, Top Cut Tape (CT) 0.020 0.50mm Solder 24 Positions Surface Mount, Right Angle Tin -25°C~85°C 0.5A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

68712414022 information

WURTH 68712414022 technical specifications, attributes, parameters and parts with similar specifications to WURTH 68712414022.

  • Type
  • Parameter
  • Contact Material
  • Phosphor Bronze
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Number of Pins
  • 24
  • Housing Material
  • Liquid Crystal Polymer (LCP)
  • Actuator Material
  • Liquid Crystal Polymer (LCP)
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Cut Tape (CT)
  • Series
  • WR-FPC
  • Feature
  • Zero Insertion Force (ZIF)
  • Part Status
  • Discontinued
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Number of Positions
  • 24
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -25°C
  • Number of Rows
  • 1
  • Gender
  • Receptacle
  • Voltage - Rated
  • 50V
  • Current Rating (Amps)
  • 0.5A
  • Pitch
  • 0.020 0.50mm
  • Orientation
  • Horizontal
  • Current Rating
  • 500mA
  • Lead Pitch
  • 500?m
  • Number of Contacts
  • 24
  • Housing Color
  • Ivory
  • Operating Supply Voltage
  • 50V
  • Contact Resistance
  • 20mOhm
  • Insulation Resistance
  • 100MOhm
  • Mating Cycles
  • 25
  • Flat Flex Type
  • FPC
  • Connector/Contact Type
  • Contacts, Top
  • Cable End Type
  • Tapered
  • Locking Feature
  • Slide Lock
  • Actuator Color
  • Black
  • Contact Location
  • Top
  • Length
  • 18.5mm
  • Width
  • 2.1mm
  • Contact Finish Thickness
  • 100.0?in 2.54?m
  • Height Above Board
  • 0.079 2.00mm
  • FFC, FCB Thickness
  • 0.30mm
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for WURTH 68712414022.

Datasheets:

Environmental Information:

68712414022 Overview


There is a mounting type of Surface Mount, Right Angle for this device.It is necessary to use a Cut Tape (CT) case for packaging the product.This product is part of the WR-FPC Series.Devices with 24 pins are available.You should use it when it's below 85°C.A minimum temperature of -25°C is required for the operation of this device.In many ways, its Zero Insertion Force (ZIF) feature makes it more powerful.Surface Mount is used to mount the part.The operating supply voltage of this memory is 50V.In this case, the device operates at -25°C~85°C Operating Temperature.

68712414022 Features


WR-FPC series


68712414022 Applications


There are a lot of Würth Elektronik
68712414022 FFC, FPC (Flat Flexible) Connectors applications.


  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
