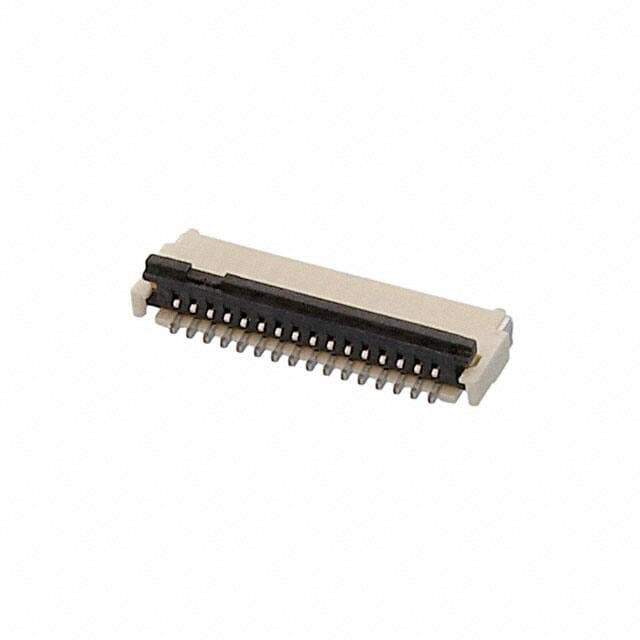

WURTH 687116182122
WURTH 687116182122

WURTH 687116182122

Manufacturer No:

687116182122

Manufacturer:

WURTH

Package:

Description:

WR-FPC Series FFC, FPC Contacts, Top and Bottom Tape & Reel (TR) 0.020 0.50mm Solder 16 Positions Surface Mount, Right Angle Tin -55°C~85°C 0.5A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

687116182122 information

WURTH 687116182122 technical specifications, attributes, parameters and parts with similar specifications to WURTH 687116182122.

  • Type
  • Parameter
  • Factory Lead Time
  • 17 Weeks
  • Contact Material
  • Phosphor Bronze
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Number of Pins
  • 16
  • Housing Material
  • Liquid Crystal Polymer (LCP)
  • Actuator Material
  • Polyamide (PA9T), Nylon 9T
  • Operating Temperature
  • -55°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • WR-FPC
  • Feature
  • Solder Retention
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Number of Positions
  • 16
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -40°C
  • Gender
  • Receptacle
  • Voltage - Rated
  • 50V
  • Current Rating (Amps)
  • 0.5A
  • Pitch
  • 0.020 0.50mm
  • Orientation
  • Horizontal
  • Current Rating
  • 500mA
  • Lead Pitch
  • 500?m
  • Housing Color
  • Ivory
  • Operating Supply Voltage
  • 50V
  • Contact Resistance
  • 30mOhm
  • Mating Cycles
  • 20
  • Flat Flex Type
  • FFC, FPC
  • Connector/Contact Type
  • Contacts, Top and Bottom
  • Cable End Type
  • Tapered
  • Locking Feature
  • Flip Lock, Backlock
  • Actuator Color
  • Black
  • Contact Finish Thickness
  • 80.0?in 2.03?m
  • Height Above Board
  • 0.037 0.95mm
  • FFC, FCB Thickness
  • 0.31mm
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for WURTH 687116182122.

Datasheets:

Environmental Information:

687116182122 Overview


There is a Surface Mount, Right Angle mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number WR-FPC belongs to the WR-FPC Series.A 16 pin is provided on the device.Whenever the temperature is below 105°C, it's best.There is a minimum temperature requirement of [0°C] for this device.In many ways, it is more powerful due to its Solder Retention feature.There is a Surface Mount mount on the part.A 50V voltage is used to supply power to this memory.This device operates at a temperature of -55°C~85°C.

687116182122 Features


WR-FPC series


687116182122 Applications


There are a lot of Würth Elektronik
687116182122 FFC, FPC (Flat Flexible) Connectors applications.


  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
