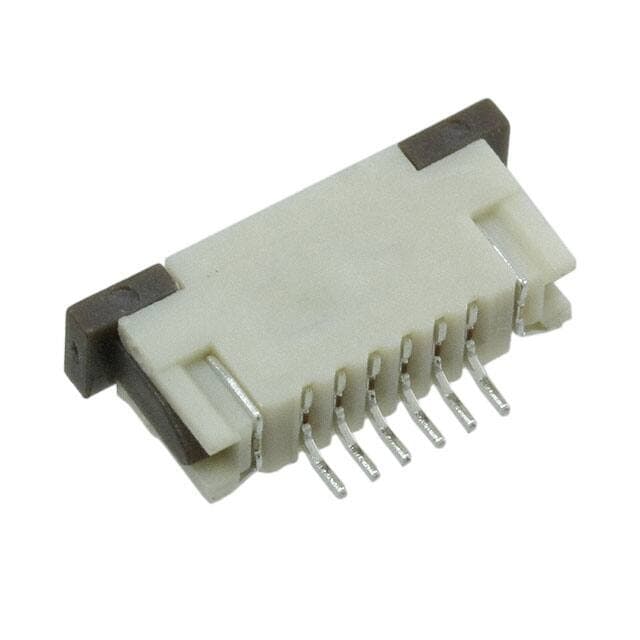

WURTH 68610614122
WURTH 68610614122

WURTH 68610614122

Manufacturer No:

68610614122

Manufacturer:

WURTH

Package:

Description:

WR-FPC Series FPC Contacts, Top Tape & Reel (TR) 0.039 1.00mm Solder 6 Positions Surface Mount, Right Angle Tin -25°C~85°C 1A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

68610614122 information

WURTH 68610614122 technical specifications, attributes, parameters and parts with similar specifications to WURTH 68610614122.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Contact Material
  • Phosphor Bronze
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Number of Pins
  • 6
  • Housing Material
  • Polyphenylene Sulfide (PPS)
  • Actuator Material
  • Polyphenylene Sulfide (PPS)
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • WR-FPC
  • Feature
  • Solder Retention, Zero Insertion Force (ZIF)
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Number of Positions
  • 6
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -25°C
  • Number of Rows
  • 1
  • Gender
  • Male
  • Voltage - Rated
  • 125V
  • Current Rating (Amps)
  • 1A
  • Pitch
  • 0.039 1.00mm
  • Orientation
  • Horizontal
  • Contact Finish
  • Tin
  • Lead Pitch
  • 1mm
  • Number of Contacts
  • 6
  • Housing Color
  • Beige
  • Operating Supply Voltage
  • 125V
  • Contact Resistance
  • 20mOhm
  • Mating Cycles
  • 25
  • Flat Flex Type
  • FPC
  • Connector/Contact Type
  • Contacts, Top
  • Cable End Type
  • Tapered
  • Locking Feature
  • Slide Lock
  • Actuator Color
  • Brown
  • Length
  • 13mm
  • Width
  • 2.95mm
  • Contact Finish Thickness
  • 100.0?in 2.54?m
  • Height Above Board
  • 0.116 2.95mm
  • FFC, FCB Thickness
  • 0.29mm ~ 0.34mm
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for WURTH 68610614122.

Datasheets:

Environmental Information:

68610614122 Overview


This device is mounted in the Surface Mount, Right Angle position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the WR-FPC Series.A total of 6 pins are available on the device.When the temperature is below 85°C, it is best to use it.A minimum operating temperature of -25°C is required for this device.There are a number of advantages to its Solder Retention, Zero Insertion Force (ZIF) feature.Part Surface Mount is mounted to the part.125V is the operating supply voltage for this memory.As a result, the device runs at -25°C~85°C Operating Temperature.

68610614122 Features


WR-FPC series


68610614122 Applications


There are a lot of Würth Elektronik
68610614122 FFC, FPC (Flat Flexible) Connectors applications.


  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
